VFFS-LP

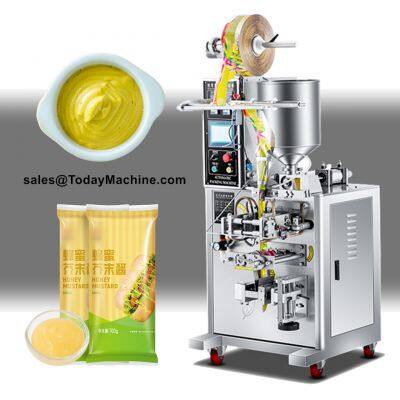

Liquid Packing Machine with Pump Volume System
A liquid bag packing machine is a type of packaging machinery used to package liquid products into pre-formed bags. These machines are designed to efficiently and accurately fill and seal bags with liquids such as water, juice, milk, oil, sauce, or other viscous liquids.
The liquid bag packing machine typically consists of a filling system, a sealing system, and a packaging material supply system. The filling system is responsible for measuring and dispensing the liquid product into the bag. The sealing system is responsible for sealing the bag after it is filled. The packaging material supply system provides the pre-formed bags that are filled and sealed.
gel packing machine
Automatic operation: The machine can operate automatically with minimal human intervention, which reduces labor costs and increases production efficiency.
High filling accuracy: The machine uses advanced technology to ensure that the liquid is accurately measured and dispensed into the bag.
Adjustable filling volume: The machine can be adjusted to fill different volumes of liquid, making it versatile for use with different products.
Hygienic design: The machine is designed to ensure that the liquid product is filled and packaged under hygienic conditions, which is important in industries such as food and beverage and pharmaceuticals.
INDUSTRIES AND APPLICATIONS
1.Beverage industry: The machine is widely used in the beverage industry to package products such as water, juice, and milk.
2.Food industry: The machine can be used in the food industry to package products such as cooking oil, sauces, and soups.
3.Chemical industry: The machine is used in the chemical industry to package products such as detergents, solvents, and lubricants.
4.Pharmaceutical industry: The machine is used in the pharmaceutical industry to package liquid medicines and solutions.
5.Cosmetics industry: The machine is used in the cosmetics industry to package products such as lotions, shampoos, and liquid soaps.
TECHNICAL SPECIFICATION
Model
| VFFS-280LP
| VFFS-280LP-PLUS
| VFFS-450LP
| VFFS-600LP
|
Film width（mm）
| Max 300
| Max 320
| Max 420
| Max 580
|
Bag size
（mm）
| L:30-175/190/210
W:18-140
| L:40-240/275/380/430
W:20-140
| L:50-275/295
W:60-195
| L:50-380
W:60-280
|
Output
| 30-60
pcs/min
| 30-60
pcs/min
| 15-30
pcs/min
| 10-30
pcs/min
|
Packing range
(ml≠g)
| 1-10ml
5-45ml
10-100ml
50-280ml
| 25-280ml
50-500ml
200-900ml
| 50-280ml
100-550ml
200-900ml
200-1100ml
200-1400ml
| 50-280ml
100-550ml
200-900ml
200-1100ml
200-1400ml
|
Dimension（mm）
| 1150x1000x1760
| 1100x1000x2000
| 1400x1100x2150
| 1500x1300x2300
|
Power
| 2KW
| 2.2KW
| 2.6KW
| 3KW
|
Weight
| 350kg
| 400kg
| 460kg
| 550kg
|
>>
