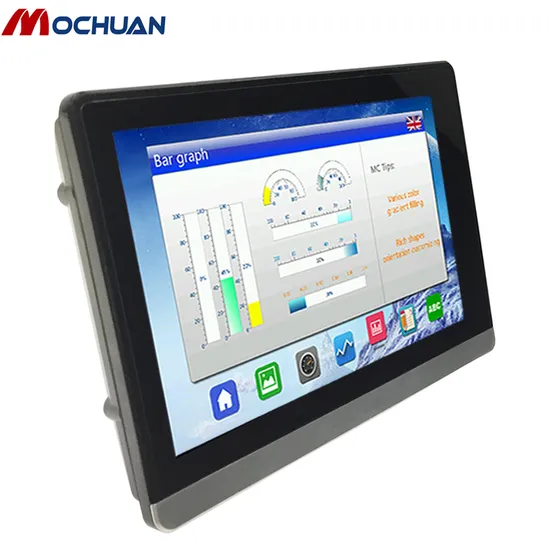

Mochuan Ethernet Touch Panel HMI 102 Modbus RTU PLC Panel

Product Description

Mochuan HMI Warranty
1. NO MOQ, 1pcs is ok.
2. We offer 36months warranty for all HMI.
3. Offering free software, Demo to help customer understand the technology problem.
4. Plastic shell 4wire economic HMI with 4.3inch, 7inch, 9.7inch and 15.6inch with ethernet.
5. Multi touch Capacitive HMI with size 7inch, 9.7inch, 17inch, 22inch and 32inch with ethernet.
6. Metla shell -20°C to +70°C wide-temperature HMI with 4.3inch, 7inch, 9.7inch, 12inch and 15inch with ethernet.
If you need, welcome contact us for the quotation.
Our Advantages 1. Independent R&T team.
2. 7days no reasons to refund.
3. 24hours and 7days in service.
4. Offering DEMO per customer requirement to help and solve the problem.
5. Supporting payment through online credit card, by USD, RMB, Euro, and the other currency.
To cearing a technical supporting group ONLY for you, to fast solve your technical question per your time, through Mochuan engineer, that is you wanna the service?
Certifications 1. Certificate Number: M.2021.206.C68701.
2. Related directives and Annex: electromagnetic compatibility 2014/30/EU.
3. Related Standards: EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A12015.
For the whole and clear CE, please cotct us. Product Description

Model	M007	M010	MC5097X	MC5170	MC5220
Compatible Labtop OS	Win7/ Win10/ Win XP
CPU	4Core 1.2GHz ARM Cortex-A7			Cortex-A8 800MHz
Touch scree	Glass+Glass Porjective multi-touch capacitive HMI
Screen Size	7'' 16:9 tft lcd	9.7'' 4.3 tft lcd		17'' 4:3 tft lcd	22'' 16:9 tft lcd
Resolution	1024x600	1024x768		1280x1024	1920x1080
Colors	24-bit colors			16-bit colors
Brightness	350cd/m2	350cd/m2			250cd/m2
Backlight	LED
Flash+ARM	4G eMMC + 256M DDR3			256MB Flash+256MB DDR3
SD card	supporting
USB	1xUSB host 2.0; 1x USB client 2.0
Ethernet	supporting
Serial Port	COM1:RS232/485/422; COM2/COM4:RS485; COM3:RS232		COM1/COM2:RS232/RS485/RS422; COM3/COM4:RS232	COM1/COM2:RS232/RS485/RS422; COM3:RS232
Audio Port	optional
Rated Power	<6W	<8W	<10W	<18W	<20W
Power	DC24V, DC9~28v		DC24V, range DC18V~28V
Power Down Allowed	less than 5mS
Working Temperature	-10~60ºC				0~50ºC
Storage Temperature	-20~70ºC				-20~60ºC
Ultraviolet proof	do not work under strong ultraviolet light( for example, direct sunlight)
Environment Humidity	10~90%RH(no condensation)
Aseismicity	10~25HZ(X, Y, Z direction 2G/30min)
Level	Front IP65(with NEMA panel), bacl IP20
Material	aluminium alloy+enginnering plastic		aluminium alloy+galvanized sheet powder spraying
Panel cutout(mm)	178x125	230x180	232x182	370x304 or wall	502x302 or wall
Dimension(mm)	185.1x131.1x30	247x197x31.5	247x197x31.5	392x325x62.5	530x338x61
Weight(g)	600g	1100g	1240g	5800g	6680g
Software	Free Mochuanstudio above V1.0

Multi-serial: M007 have multi serial port: COM1/COM2/COM3/COM4, three pcs of RS485 to meeting the requirement from the market.
HMI Panel Screen: Projected capacitive, multi touch Glass+Glass HMI, nimble touch, high light transmittance, anti-scratching, no drifiting.
Strong CUP: ARM Cortex A87 processor, high speed and easy flow, supporting animatio formats( including BMP, JPG, GIF, PNP...etc, can be
imported and displayed directly.
PCB Coating Protection: enhance the strength of damp proof, dust proof, corrision resistance in harsh environment. Including three anti-paint.

Email Alert Function: supporting any the run-time error to send through by gmail to provide users with real-time monitoring at all the time.
VNC control: supporting to control HMI through PC or Mobile App to realize more intuitive and convenient operation.
What&How Mochuan is
With more than 15-years domestic market development since 2002 and exported HMI, PLC, VFD and switching power supply since 2009 .Development, and the sufficential support and cooperate from all our valuable customers.
Mochuan Drives have been integrated manufacturer and engineering company in PLC, HMI Panel, VFD, switching power supply. Our one-step service has the honor to serve more than 100 industries in China and more than 200 foreign customers.
Our value message is QUALITY IS OUR CULTURE.
90% of our prodution equipment is imported from Japan and Germany to offer our customers the best competitive advantage PRODUTS.
"With us your MONEY in safe, your BUSINESS in safe".
WELCOME TO BE ONE OF OUR TOP"VIP" CUSTOMERS.
WE BELIEVE THAT " THE QUALITY IS THE SOUL OF AN ENTERPRISE."
Mochuan Related Products PLC Independent Temperature control Self-tuning PID RS485 Model,
1. There are two models, one is MSP-4PT-P with 4channels, the other is MSP-6TC-P with 6channels.
2. Built-in the prescise PID algorithm accumlated, it has high temperature control accuracy and overshoort suppression, strong characterics.
3. Both of them integrated an excellent self-tuning algorithm, and user can auto-tune with one button to accurately obtain PID parameter according to need.
4. Through rs485 communication port, the module can communicate with the upper computer of variouse brands, types of plc, hmi and configuration software, etc to complete more complex logic temperature control.
Excepting HMI, MochuanDrives also support PLC controller, VFD and Switching Power Supply with NO MOQ, 1pcs is ok. Creating a technical supporting group one by one to guide and solve the technical question.
2. Economic HMI, supporting from 4.3inch to 15.6inch with multiple configuration with NO MOQ, 1pcs is ok, click the picture for more info.
3. PLC controller, supporting 16/16, 32/32, click the picture for more info
4. Din-rail switching power supply, Max to 960W, click the picture for more info. To enjoy 36months warranty, with NO MOQ, 1pcs is ok.

---
