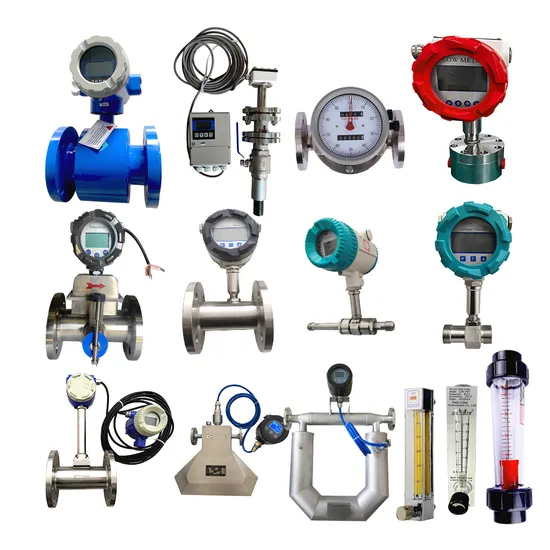

Air Gas/Fuel Oil/Waste Water Steam Thermal Mass Flow Meters Electro Magnetic Turbine Vortex Flowmeter Transmitter Flow Meter

Product Description

Thanks for visiting our site, welcome to send us your flow meter requirements by click contact us, we will reply you in 24hours.
Tianjin U-ideal Instrument Co., Ltd are one of the repute's manufactures and flow meter supplier in China in produce the level gauges and flow meters. Our products are metal rotary flow meters, vortex flow meters and turbine flow meters, electromagnetic flow meters, oval gear wheel flow meters, precession vortex flow meters and roots flow meters.
Our flow meters are calibrated by special testbed, can assure you good accuracy.
Our flowmeter are done with actual good material, don't mix any bad matrial.
We do those all hope have long business relationship with you.
Product Description
1. Electromagnetic Flow Meter
Electromagnetic flowmeter is a kind of high performance, high reliability of the flowmeter. Widely used in petroleum, chemical to measure water, sewage, acid, alkali, salt solution or volume flow of liquid-solid two-phase fluid conductive medium.
Main Features:
1. The measurement accuracy is not affected by the changes of fluid density, viscosity, temperature, pressure and conductivity.
2. The measurement tube has no obstruction of flow components, no pressure loss.
3. Has a variety of output : current, pulse, digital communication, HART ;
4. LCD displays cumulative flow, instantaneous flow, flow rate, flow percentage, etc.
5. Two-way measuring system, can measure forward flow, reverse flow.
2. Vortex flow meters
LUGB series Vortex flow meters are designed for measuring the volume/mass flow of liquids, gases and steam based on Karman vortex principle.
Main Features:
1. Configure with temperature/pressure senor.
2. Low power consumption, a dry battery can service at least 3 years.
3. Self-checking function: the rich self-checking information makes maintenance and debugging easy.
4. Three-Wire system supports RS485 communication.
3. Turbine flowmeter
LWGY Turbine flowmeter is composed of turbine, bearing, preamplifier and display instrument. It is high measurement accuracy, low price, low weight, good repeatability. It is widely used in petroleum, chemical, metallurgical, textile, food, pharmaceutical, paper and other industries, as well as environmental protection, municipal management, water conservancy construction and other fields.
LWQZ gas turbine flowmeter is designed and produced for the measurement and control of various gases. It can display instantaneous flow and cumulative flow at the same time, It can automatically compensate for temperature, pressure and compression factor at standard condition (Pb=101.325kPa,Tb=293.15K). It is widely used in gas metering of petroleum, chemical, power, metallurgy, industrial boilers and other industrial industries and urban natural gas, gas regulator stations and gas trade metering.
4. Coriolis Mass flow meter
UICMF Coriolis mass flowmeters are the leading precision flow and density measurement solution, offer the most accurate and repeatable mass measurement for liquid and gas. while exhibiting exceptionally low pressure drop. Measuring the Mass flow rate + volume flow rate + density measurement +temperature measurement +calculated variables (e.g. fluid concentrations) at the same time.
Main Features:
1. UICMF flowmeter gives Unchallengeable performance on liquid mass flow, volume flow, and density measurement.
2. Unique design delivers unparalleled measurement sensitivity and stability.
3. Guarantees consistent, reliable performance over the widest flow range.
4. Designed to minimize process, mounting, and environmental effect.
5. Ultrasonic flowmeter
Ultrasonic flowmeter is a type of non-contact pipe flow meter. It can be used for production monitoring, water meter balance debugging, heating network balance debugging, and energy-saving monitoring. It is the necessary tools and instruments for timely flow detection.
Main Features:
1. Installed outside the pipe, without intercepting, breaking the pipe, and no pressure loss.
2. when Equipped with an external clamp temperature sensor to test temperature, can achieve heat metering.
3. the signal cable can be any length.
4. Flow measurement of large diameter pipeline can be realized.
6. Thermal gas mass flowmeter
Thermal gas mass flow meter is designed on the basis of thermal dispersion, and adopts method of constant differential temperature to measuring gas flow. It has advantages of small size, easy installation, high reliability and high accuracy, etc.
Main Features:
1.Different gas coefficient arbitrarily set.
2.Show multiple sets of values.
3.Straight pipe requirements smaller, 1D-2D canachieve high-precision measurement.
4.LCD display, with Multiple display interface.
Product Parameters

Electromagnetic Flow Meter
Main power	AC220V 50HZ/110VAC / DC24V /battery/solar
Display	LCD display with back lighting can display the instantaneous flow ,total flow and percentage of flow as well as alarm display
Connection method	clamp on,wafer,flange(JIS,DIN,ANSI,ASME,),thread(BSP,NPT,G,CG),tri clamp,clamping ,welding
Body material	SS304,SS316L,CS,PP
Lining material	PTFE,NBR,rubber,F46,F4,EPDM,PO,PPS,PEA,ceramics
electrode	SS316L,HC,HB,Ti,Ta,Pt,ceramics
Accuracy	±0.5% of the value displayed ,±0.3% or ±0.2% are selectable.
Signal output	4-20ma,pulse,0-5V,0-10V,Alarm
Communication	RS232 ,RS485,Profibus or HART Communication are selectable ,
Protection class	IP65/IP68(split type)
Ex-proof Mark	Exd IIBT4
Accumulator	Forward total quantity ,reverse total quantity
Medium Temperature	-40ºC ~ +180ºC
Medium Electrical Conductivity	≥ 20μs/cm;special make ≥ 5μs/cm
Measuring Range	1500 : 1, flow rate < 15m/s

Vortex flow meters
DN (mm)	DN25-DN300, DN300~1000 insert type	PN	1.6MPa ~4.0MPa
Range ratio	1:6~1:30	Power	+24V DC; 3.6V battery
Fluid	Steam, Gas, Liquid	Material	Carbon steel, SS304, SS316
Accuracy	±1.5%R, ±1FS; insert: ±2.5%R, ±2.5%FS	Signal	pulse (no-battery) or 4~20mA
Suitable temp.	-40~250 ºC, -40~450C	IP	IP65 or IP68 on order
Vibrating acceleration	Piezoelectric type:0.2g, Capacitance:1.0~2.0g
Environment	Temp -20ºC~55ºC,Relative humidity 5%~90%, Atm press 86~106kPa
Transmission distance	3-wire flow sensor:≤300m, 2-wire 4~20mA: load resistance≤750Ω

Liquid Turbine flowmeter
Nominal diameter	4~200mm
Accuracy level	±1%R. ±0.5%R. ±0.2%R(Need to be specially made)
flow velocity range	0.9-7m/s
Work temperature	-20 C~+110 C
Work pressure	1.6Mpa;2.5Mpa;4Mpa;6.3Mpa;>6.3Mpa~20MPa
Ambient	Temp.: -10 C to +55 C, Pressure: 86 to 106 KPa , Humidity: 5% to 90%
Material	304SS ; SS316L etc
Output mode	Field display ; 4-20ma ; pulse signal
Communications	RS485, HART
Explosion-proof	Explosion-proof EXdII BT1~T6;Intrinsic explosion-proof type EXiaII CT1~T6
Protection level	IP65 (Can customizable higher)

LWQZ Gas turbine flowmetr
Measuring diameter	25~300mm
Accuracy level	±1.5%R, ±1%R
Flow rate range	2.2-80m/s
Medium temperature	-30oC~+80oC
Working pressure	1.6Mpa; 2.5Mpa; 4Mpa
Environmental temp.	-20oC~+60oC
Material	304SS ; SS316L
Power supply	8-24VDC+ 3.6V lithium battery
Output mode	Field display; 4-20mA; pulse
Communication	RS485 ; HART
Explosion-proof	EXdII BT1 ~ T6 , EXiaII CT1 ~ T6
Protection level	IP65 ( or higher )

Coriolis Mass flow meter
Diameter	10~150mm
Accuracy	0.5%; 0.2%; 0.15%; 0.1%
Repeatability	±0.1~0.25%
Density measurement range	0.5~3.000g/cm3, Accuracy: ±0.002 g/cm3
Temperature measuring range	-200~350ºC, Accuracy: ±1ºC
Material	The measuring tube SS316L; Housing: SS304
Working pressure	0~4.0MPa
Ambient temperature	-40ºC~60ºC
Power supply	18~36VDC;85~265VAC
Unit	Mass flow rate: g/h. kg/h. t/h. g/m. kg/m. t/m Total flow: g, kg, t Volume flow rate: cm³/h. dm³/h. m³/h. cm³/m. dm³/m. m³/m Total volume: cm³/m. dm³/m Density: kg/m³. g/cm³ Temperature:ºC. K. ºF
Output signal	0~10000Hz pulse frequency signal flow signal (open collector signal) Equivalent pulse signal flow signal 4~20mA Current signal choose one signal from flow rate, density, temperature Current output load capacity is not less than 750Ω(24VDC power supply) Accuracy: Pulse signal 0.05% Current signal 0.2% Communication signal: RS485, MODBUS protocol Hart
Explosion-proof level	Exd (ia) II C T6Gb
Transmitter and Sensor protection	IP67

Ultrasonic flowmeter
Items		Specifications
Main unit	Accuracy	Better than ±1%
	Repeatability	Better than 0.2%
	Display	LCD with backlight, display accumulated flow/heat, instantaneous flow/heat, velocity, time etc.
	Output	Analogue output: 4-20mA or 0-20mA current output. Impedance 0∼1kW. Accuracy 0.1%.
		OCT output: Frequency signal (1~9999HZ)
		Relay output: over 20 source signal (no signal, reverse flow etc.)
		RS485 serial port
pipe	material	Steel, stainless steel, cast iron, cement pipe, copper, PVC, aluminum, FRP etc. Liner is allowed
	Size	15-6000mm
	Straight pipe section	In the upstream it must be beyond 10D, in the downstream it must be beyond 5D, in the upstream the length must be beyond 30D fro the access of the pump. (D stands for pipe diameter)
Liquid	Types	Water, sea water, industrial sewage, acid & alkali liquid, alcohol, beer, all kinds of oils which can transmit ultrasonic single uniform liquid
	Temperature	Standard: -30˚C - 90˚C ,High-temperature:-30˚C - 160˚C
	Turbidity	Less than 10000ppm, with a little bubble
	Flow Direction	Bi-directional measuring, net flow/heat measuring
Cable	Twisted Pair Line, standard length of 20m, can be extended to 500m (no recommended); Contact the manufacturer for longer cable requirement. RS-485 interface, transmission distance up to 1000m
Power Supply	AC220V or DC24V
Power Consumption	Less than 1.5W
Protocols	MODBUS, M-BUS, Fuji extended protocol and other factory protocol

Thermal gas mass flowmeter
Measuring Medium	Various gases (Except the acetylene)
Pipe Size	DN10~DN4000mm
Velocity	0.1~100 Nm/s
Accuracy	±1~2.5%
Working Temperature	Sensor: -40ºC~+550ºC Transmitter: -20ºC~+45ºC
Working Pressure	Insertion Sensor: medium pressure≤ 1.6MPa Flanged Sensor: medium pressure≤ 1.6MPa Special pressure please contact us
Power Supply	Compact type: 24VDC or 220VAC, Power consumption ≤18W Remote type: 220VAC, Power consumption ≤19W
Output	4-20mA (optoelectronic isolation, maximum load 500Ω), Pulse, RS485 (optoelectronic isolation) and HART
Alarm Output	1-2 line Relay, Normally Open state, 10A/220V/AC or 5A/30V/DC
Sensor Type	Standard Insertion, Hot-tapped Insertion and Flanged
Construction	Compact and Remote
Pipe Material	Carbon steel, stainless steel, plastic, etc
Display	4 lines LCD Mass flow, Volume flow in standard condition, Flow totalizer, Date and Time, Working time, and Velocity, etc.
Protection Class	IP65
Sensor Housing Material	Stainless steel (316)
Applicable media	Dry gas, air which doesn't contains water.
Measuring range	0.05-141m/s (at standard conditions 20ºC, 0.101325MPa), if flow velocity out of this range, please consult with the manufacturers customization

Company Profile
Hebei Xukang Meter Manufacturing and Tianjin U-ideal Instrument Co., Ltd as a group, have more than 20years products research and development experience. And have 16years export experience, 5000m2 factory, tens of new machines.
Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation. Our products strictly enforce the ISO9001 quality management system, and provide customer a safe product.
Our products range:
1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc
2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc.
3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc.
4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer,Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc.
5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc.
6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc. Certifications

Packaging & Shipping
For small order quantity,we can send them to you by express delivery,TNT,DHL,UPS OR EMS etc. For big order quantity ,we will advise you to use Air Shipping or Sea Shipping through your nominated forwarder agent or our long-term cooperated agent.
FAQ
1. who are we?
We are based in Hebei, China, start from 2017,sell to Domestic Market(15.00%),Mid East(12.00%),South America(10.00%),Southeast Asia(10.00%),Eastern Asia(10.00%),North America(9.00%),Northern Europe(8.00%),Africa(5.00%),South Asia(5.00%),Southern Europe(5.00%), Eastern Europe(5.00%),Central America(2.00%), Oceania(2.00%),Western Europe(2.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Level Indicator,Level sensor,Level Switch,Flow Meter,Pressure sensor
4. why should you buy from us not from other suppliers?
20 years export experience.
We are group company with Tianjin U-ideal Instrument Co., Ltd.
More than 20years for products Research and development.
5000m2 factory, high-precision machines.
Level gauge, flowmeter and pressure sensor have top quality
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,CPT,DDP,DDU,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card, PayPal,Western Union,Cash;
Language Spoken:English,Chinese

---
