Product Details
Product Description
Product Description

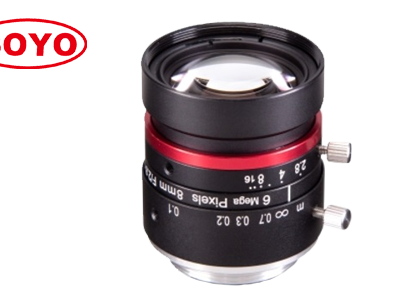

8mm 1/1.8" 6.0 Megapixel Machine Vision Lenses FA Low Distortion Industrial Camera Lens Automation Measurement Positioning Computer AI C Mount China Optics
High resolution : 6.0 megapixel cover all 4K & 1080P
Large format: 1/1.8" size covering 1/1.8", 1/2", 1/3 camera
Mini size : Small size design makes it match most application
Low distortion : Low distortion 0.11% for measurement and vision
Application : Automation, machine vision, medical, life science, SMT, AOI.
Model
| SFA0828-6M
|
Format
| 1/1.8”(Φ9.5mm)
|
Resolution
| 6.0 Megapixel( 2.4μm pixel size )
|
Focal Length
| 8mm
|
Aperture
| F2.8
|
Angle of View (°)
| 1/1.8"
| 60*47.5*37
|
1/2"
| /
|
M.O.D
| 0.1m
|
Distortion
| Max 0.53% / Min 0.11% (WD=200~400mm)
|
Filter Size
| M30.5*P0.5
|
Relative illumination
| 78% (H=4.5mm WD=INF)
|
Transmission
| AT486~656nm T≥85%
|
T.T.L
| 52mm
|
B.F.L
| 10.39mm
|
CRA
| 10.8°
|
Size
| Φ32.5*34.5mm
|
Mount
| C
|
Weight
| 61g
|
Marks
| 9G
|
