300kg Permanent Magnetic Lifter with Ce Certificate

Product Description

300kg Permanent Magnetic Lifter with CE certificate
The permanent magnetic lifter can be used in variety of industries for the transportation and lifting of steel, engine parts,
semi manufactured goods and moulds, due to its magnetic the surface of lifted goods.
Features:
The magnetic lifter's highest pulling force is 3.5 times greater than rated lifting capability.
Light weight, ranging from 10-125kg.
Safe: No electricity is needed to operate the magnetic lifter, once operated there is less than 1% residual magnetism.
The simple switch and satety buttom design allows for one handed operation.
Larger sizes available, output up to 6000kg.
How to determine the right type of magnetic lifting for your application?
1) The capacity of the lifting magnet determined by the thickness and surface quality of the component
2) Before operation it is necessary to find out the percentage of the steel thickness of the component and capacity curve.
3) If the components surface roughness is less than 6.3um, the magnetic lifter surface gap will not exist, the lifter gap
should be estimated.
Technical Parameters

Model	Rated lifting strength	Cylindrical lifting strength	Max. pull-off strength	L	W	H	R	Operation temperature	Net weight
	Kgf	Kgf	Kgf					degree	Kg
Pml-1	100	30	350	92	64	70	145	below80	3

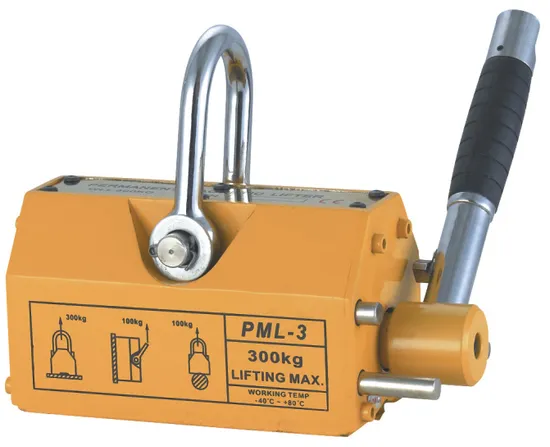

Pml-3	300	100	1050	165	88	96	176	below80	10
Pml-5	500	150	1750	216	118	118	219	below80	20
Pml-6	600	200	2100	236	118	120	219	below80	24
Pml-10	1000	300	3500	264	168	168	285	below80	50
Pml-15	1500	500	5200	352	168	168	380	below80	70
Pml-20	2000	600	7000	378	226	216	462	below80	125
Pml-30	3000	1000	10500	453	290	265	567	below80	220
Pml-50	5000	1500	17500	647	290	265	707	below80	355
Pml-60	6000	2000	19200	713	290	266	707	below80	398

Company Profile
TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of
electric chainhoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than
15 years experience andhard work.
Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.
We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001: 2008 and TUV certified manufacturer,
our products are CE, GS, SGS certified, serving all spheres of industry in the world.
Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics,
railway,shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.
The company establishes a global marketing network with exportation to Germany, Norway, Poland, United States, Canada, Mexico,
Peru,Brazil, Argentina, Egypt, Saudi Arabia, South Africa, India, Indonesia, Malaysia and total more than 50 countries and regions.
Certificates
Why Choose Us
1.Longest history and longevity - TXK is one of the oldest established electric chain hoist manufacturers in China,with almost 20 years.
2.Largest factory and production capability - TXK factory is the biggest factory covering more than 56,000 square meters territory.
3.Widest products and servuce providing - TXK can provide widest products itema include electric & manual lifting equipments.
4.Richest experience in world business - TXK has more than 10 years experience on international trade business.
5.Fastest lead times - TXK factory is equipped with most efficient producing line which handled by skillful workers.
6.Fullest certifications - TXK factory and products are well certified by CE,GS,TUV,ISO,SGS,etc.
7.Highest reputation - TXK products are well sold in more than 50 countries.
Partners with US
Our Main Products
TXK manufactures and markets a wide range of hoists and overhead cranes for use in a variety of industries around the world.
From our 250kg. capacity Series 602 mini ratchet lever hoist that can fit in your lunch box to our 60-ton, high-capacity electric
wire rope models, we have the right hoist for your application. We carry an extensive line of powered hoists, including electric
and pneumatic chain and wire rope hoists. We also offer a full line of manual hoists, both hand chain and lever tools. Although
many hoists are standard "off the shelf" units, we can modify most hoists to meet your exact requirements.We provide complete
solutions to lift your business operations to newer heights.
FAQ
1:What is the MOQ:
MOQ can be one set

2,How about the payment?
We accept the T/T and LC at sight

3.What is the sample policy?
We could send the 1 set sample to your test before place the order

4.What is the lead time for your goods?
Normally is the 10-15days after confirm the order

5,What should I provide if i want to order the products?
The more information you provide, the accurate solution we can prepare for you!
A-Capacity?
B-Lifting height?
C-what is lifting material? How about working environment?
D- Power supply and control voltage?

---
