Steel Structure H-Beam Channel-Beam Steel CNC Hydraulic Three-Dimensional High Speed Drilling Machine Structural Steel Fabrication Machine

Product Description

Steel Structure H-Beam Channel-Beam Steel CNC Hydraulic Three-Dimensional High Speed Drilling Machine 75mm*150mm-600mm*1250mm
Product Description:

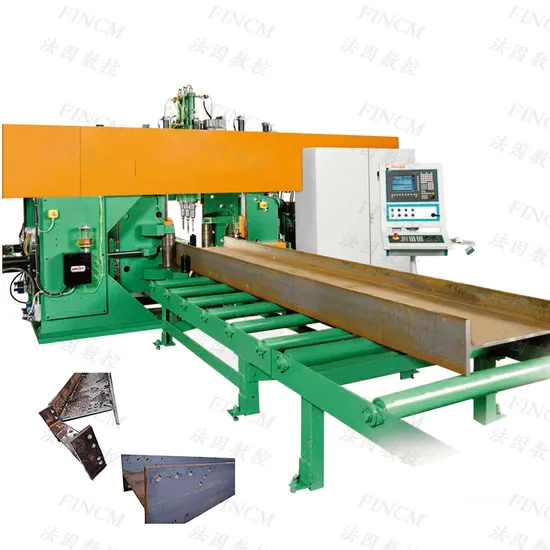

BHD1206C/3 CNC high speed drilling machine for H-beams.and channel-beam steel.
Applicable Industry:
Can be widely used in building, bridges and other industries.
Main Technical Specifications:

H beam	section height H	150~1250mm
	flange width B	75~600mm
U beam	section height H	150~1250mm
	flange width B	75~300mm
drillig power head	Max. width of work piece	80mm
	Number	3
	Max. drilling diameter	hard alloyφ30mm/high speed steelφ40mm
	spindle taper hole	BT40
	spindle motor power	3×11KW
	spindle speed(variable speed)	0~2000r/min 4,CNC axis:
CNC axis	Number	7
	power of feeding axis servo motor located on fixed side, movable side and middle side	3×2KW
	power of positioning axis servo motor located on fixed side, movable side and middle side	3×1.5KW
	speed of 3 positioning CNC axes	0~10m/min
	speed of 3 feeding CNC axes	0~5m/min
	inspecting travel of web width	1100mm
	inspecting travel of web height	290mm
	centralized automatic lubrication	1 set
conveying cart	power of conveying cart servo motor	5 KW
	Max. conveying speed	20m/min
	Max. conveying weight	10t
,spray cooling system	nozzle number	3
	pressure of compressed air	0.5Mpa
	cooling model	internal cooling + external cooling
	machine appearance size(L×W×H)	about 6.0×2.1×3.4m
	machine weight	about 8000Kg

Working temperature: 0ºC~40ºC
power:3 phase 4 wire; voltage:380±10%V ; frequency:50HZ
List of the Key Outsourced Components:

NO.	Name	Band	Country
1	Principal Axis	Kenturn	Taiwan(China)
2	Linear rolling guide pair	HIWIN/CSK	Taiwan(China)
3	Hydraulic pump	Justmark	Taiwan(China)
4	Electromagnetic hydraulic valve	ATOS	Italy / Japan
5	Servo motor	Siemens / MITSUBISHI	Germany / Japan
6	Servo driver	Siemens / MITSUBISHI	Germany / Japan
7	Programmable controller	Siemens / MITSUBISHI	Germany / Japan
8	Computer	Lenovo	China

Note: The above is our fixed supplier. If the supplier can not supply the components in case of any special matter, we will adopt the components with the same level, but the quality is no worse than the above.
Product Feature:

The cnc machines BHD1206C/3 is mainly composed of main body, CNC slipway, drilling spindle box, tool changer, clamping device, measuring device, electric system, hydraulic system, cooling system, chip box, etc..
Three slipways are all controlled by servo motor, guided by precision linear roller guide and driven by AC servo motor and ball screw to ensure the positioning accuracy. The spindles are precision spindles with high rotary accuracy and high rigidity, and driven by servo motor, with broad scope of application, rotation speed can be stepless changed in a wide range to meet the needs of a variety of speeds.
The vertical drilling machine is equipped with three inline type tool changers, and every tool changer can load 4 tools. While drilling, the tools can be changed automatically to meet the needs of different drilling diameters. The machine is equipped with flange width detection and web height detection device, which can effectively compensate for the deformation of the workpiece to ensure the processing accuracy.

Company Introduction:
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Our Service
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
