Product Details
Product Description
Product Description

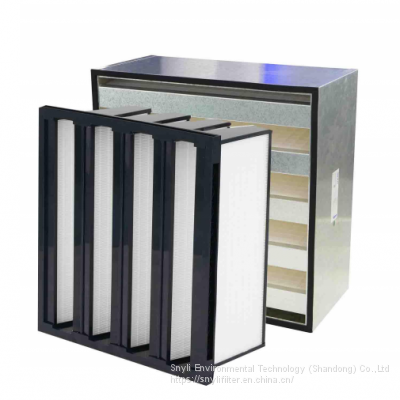

The unique V-bank design enables more area of mini-pleated filtration media being assembled and lower pressuredrop, which results in higher dust holding capacity and longer service life.
Frame:
Frame: ABS,Galvanized, Aluminum
V Number: 2V、3V、4V、5V
Media: Synthetic fiber & glass fiber
Efficiency:
M6 (EN 779), 60~80% / MERV 11~12 (ASHRAE 52.2)
F7 (EN 779), 80~90% / MERV 13 (ASHRAE 52.2)
F8 (EN 779), 90~95% / MERV 14 (ASHRAE 52.2)
Separator: Hot melt
Sealant: EPDM
Max. Temperature: 70°C
Max. Humidity: 100% RH
Application:
V-bank filters are designed for high volume airflow requested facilities. They are mainly used as secondary filters for facilities with HEPA/ULPA requirements, for instance office building, clean room and breeding plants, etc.
4V Medium V bank
| Dimensions | Width (mm) | Height (mm) | Depth (mm) | Media Area (m2) | Airflow / Pressure Drop (m3/h / Pa) | Efficiency EN779 | Volume (m3) | Weight (kg) |
| 4V-24x24x12 | 592 | 592 | 292 | 14.3 | 3600 / 80 | F6 | 0.1 | 5.0 |
| 4V-24x20x12 | 592 | 490 | 292 | 11.3 | 2900 / 80 | F6 | 0.08 | 4.0 |
| 4V-24x12x12 | 592 | 287 | 292 | 6.8 | 1800 / 85 | F6 | 0.05 | 3.0 |
| 4V-24x24x12 | 592 | 592 | 292 | 14.3 | 3600 / 100 | F7 | 0.1 | 5.0 |
| 4V-24x20x12 | 592 | 490 | 292 | 11.3 | 2900 / 100 | F7 | 0.08 | 4.0 |
| 4V-24x12x12 | 592 | 287 | 292 | 6.8 | 1800 / 105 | F7 | 0.05 | 3.0 |
| 4V-24x24x12 | 592 | 592 | 292 | 14.3 | 3600 / 125 | F8 | 0.1 | 5.0 |
| 4V-24x20x12 | 592 | 490 | 292 | 11.3 | 2900 / 130 | F8 | 0.08 | 4.0 |
| 4V-24x12x12 | 592 | 287 | 292 | 6.8 | 1800 / 135 | F8 | 0.05 | 3.0 |
| 4V-24x24x12 | 592 | 592 | 292 | 14.3 | 3600 / 155 | F9 | 0.1 | 5.0 |
| 4V-24x20x12 | 592 | 490 | 292 | 11.3 | 2900 / 165 | F9 | 0.08 | 4.0 |
| 4V-24x12x12 | 592 | 287 | 292 | 6.8 | 1800 / 170 | F9 | 0.05 | 3.0 |
2V Medium V bank
| Dimension | Width (mm) | Height (mm) | Depth (mm) | Media Area (m2) | Airflow / Pressure Drop (m3/h / Pa) | Efficiency EN779 | Volume (m3) | Weight (kg) |
| 2V-24x24x12 | 592 | 592 | 292 | 9.6 | 3400 / 65 | F6 | 0.1 | 3.3 |
| 2V-24x20x12 | 592 | 490 | 292 |
|
|
|
|
|
| 2V-24x12x12 | 592 | 287 | 292 | 4.2 | 1700 / 80 | F6 | 0.05 | 2.1 |
| 2V-24x24x12 | 592 | 592 | 292 | 9.6 | 3400 / 100 | F7 | 0.1 | 3.3 |
| 2V-24x20x12 | 592 | 490 | 292 |
|
|
|
|
|
| 2V-24x12x12 | 592 | 287 | 292 | 4.2 | 1700 / 120 | F7 | 0.05 | 2.1 |
| 2V-24x24x12 | 592 | 592 | 292 | 9.6 | 3400 / 130 | F8 | 0.1 | 3.3 |
| 2V-24x20x12 | 592 | 490 | 292 |
|
|
|
|
|
| 2V-24x12x12 | 592 | 287 | 292 | 4.2 | 1700 / 150 | F8 | 0.05 | 2.1 |
| 2V-24x24x12 | 592 | 592 | 292 | 9.6 | 3400 / 160 | F9 | 0.1 | 3.3 |
| 2V-24x20x12 | 592 | 490 | 292 |
|
|
|
|
|
| 2V-24x12x12 | 592 | 287 | 292 | 4.2 | 1700 / 180 | F9 | 0.05 | 2.1 |
4V HEPA V bank
| Dimension | Width (mm) | Height (mm) | Depth (mm) | Media Area (m2) | Airflow / Pressure Drop (m3/h / Pa) | Efficiency EN1822 | Volume (m3) | Weight
(kg) |
| 4V-24x24x12 | 592 | 592 | 292 | 18.5 | 3400 / 230 | E10 | 0.1 | 5.0 |
| 4V-24x20x12 | 592 | 490 | 292 | 15.2 | 2650 / 230 | E10 | 0.08 | 4.0 |
| 4V-24x12x12 | 592 | 287 | 292 | 8.4 | 1700 / 230 | E10 | 0.05 | 3.0 |
| 4V-24x24x12-0P | 592 | 592 | 292 | 31.6 | 3000 / 250 | E12 | 0.1 | 5.0 |
| 4V-24x20x12-0P | 592 | 490 | 292 | 26.7 | 2400 / 250 | E12 | 0.08 | 4.0 |
| 4V-24x12x12-0P | 592 | 287 | 292 | 14.7 | 1350 / 250 | E12 | 0.05 | 3.0 |
4V HEPA V bank
| Dimension | Width (mm) | Height (mm) | Depth (mm) | Media Area (m2) | Airflow / Pressure Drop (m3/h / Pa) | Efficiency EN1822 | Volume (m3) | Weight (kg) |
| 4V-24x24x12-0P | 592 | 592 | 292 | 29.7 | 3000 / 250 | H13 | 0.1 | 5.0 |
| 4V-24x20x12-0P | 592 | 490 | 292 | 24.3 | 2450 / 250 | H13 | 0.08 | 4.0 |
| 4V-24x12x12-0P | 592 | 287 | 292 | 13.7 | 1350 / 250 | H13 | 0.05 | 3.0 |
Various V-section HEPA V bank
| Dimension | Width (mm) | Height (mm) | Depth (mm) | Media Area (m2) | Airflow / Pressure Drop (m3/h / Pa) | Efficiency EN1822 | Volume (m3) | Weight (kg) |
| 5V-24x24x12-0P | 610 | 610 | 292 | 45.0 | 3400 / 250 | H13 | 0.11 | 20.0 |
| 2V-12x24x12-0P | 305 | 610 | 292 | 18.0 | 1700 / 250 | H13 | 0.05 | 13.0 |
| 5V-24x24x12-0P | 610 | 610 | 292 | 46.0 | 3000 / 250 | H14 | 0.11 | 23.0 |
| 2V-12x24x12-0P | 305 | 610 | 292 | 18.0 | 1500 / 250 | H14 | 0.11 | 20.0 |
>>
