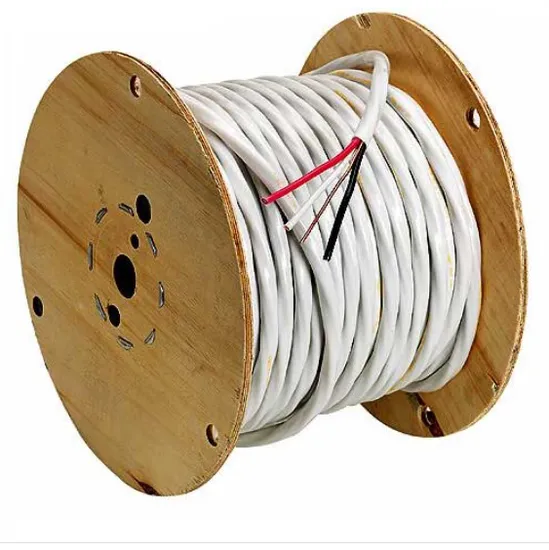

cUL Certificate Electric PVC Copper Wire Nmd90 14/2 12/2 14/3 12/3 Indoor Non-Metallic Solid Conductor with Ground Electrical Wire 300V Canada

Product Description

cUL Certificate Electric PVC copper wire Nmd90 14/2 12/2 14/3 12/3 Indoor Non-Metallic Solid Conductor with Ground electrical Wire 300V Canada
Applications:
NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.The maximum allowable conductor temperature is 90°C. The minimum recommended installation temperature is -25°C for two-conductor cables and -10°C for three-conductor cables (with suitable handling procedures). Material should be properly stored above 0°C for 24 hours prior to installation.The maximum voltage rating for all intended applications is 300 volts. Consult the Canadian Electrical Code1 for further information related to applications.
Standards:
Type NMD90 cable complies with:ASTMCSA C22.2 No. 48 (non-metallic sheathed cable)Canadian Electrical Code1
CONSTRUCTION:
NMD90 cables are available as two- or three-conductor cables with a bare grounding conductor. It is manufactured using annealed (soft) copper conductors-compressed standing for stranded conductors; a heat-resistant thermoplastic polyvinyl chloride (PVC) insulation and nylon jacket for the individual conductors with a PVC jacket for the overall construction.Conductors are white, black and red (for 3 conductor cables). Cable jackets are colour coded by size for quick identification in the Table below:JACKET COLOUR CODE - Typical Application Guide•WHITE - General Residential Wiring•RED - 2 Black and Red conductors - 208V-240V Circuits (no neutral)•ORANGE - No. 10 AWG General Residential Wiring•YELLOW - No. 12 AWG General Residential Wiring•BLUE - No. 14 AWG - 2 black and white conductors - 120V Arc Fault Circuit Interupter ApplicationsNMD90 jackets which reduces the coefficient of friction, allowing cables to be installed without externallubricants, resulting in reduced labour and materials costs.
Specification:

AWG OR KCMIL	STRAND	NOMINAL INSULATION THICKNESS INCH/MM		NOMINAL JACKET THICKNESS INCH/MM		NOMINAL OVERALL DIAMETER INCH/MM		CABLE WEIGHT LBS/KFT KG/KM
14	1	0.015	0.38	0.004	0.10	0.11	2.79	15	22
12	1	0.015	0.38	0.004	0.10	0.12	3.05	23	34
10	1	0.020	0.51	0.004	0.10	0.15	3.81	37	54
14	19	0.015	0.38	0.004	0.10	0.11	2.79	16	24
12	19	0.015	0.38	0.004	0.10	0.13	3.30	24	36
10	19	0.020	0.51	0.004	0.10	0.17	4.32	39	58
8	19	0.030	0.76	0.005	0.13	0.22	5.59	63	94
6	19	0.030	0.76	0.005	0.13	0.26	6.60	98	145
4	19	0.040	1.01	0.006	0.15	0.33	8.38	157	234
3	19	0.040	1.01	0.006	0.15	0.36	9.14	193	287
2	19	0.040	1.01	0.006	0.15	0.39	9.91	240	357
1	19	0.050	1.27	0.007	0.18	0.43	10.92	300	446
1/0	19	0.050	1.27	0.007	0.18	0.47	11.94	376	560
2/0	19	0.050	1.27	0.007	0.18	0.52	13.21	467	695
3/0	19	0.050	1.27	0.007	0.18	0.57	14.48	581	864
4/0	19	0.050	1.27	0.007	0.18	0.64	16.26	724	1077
250	37	0.060	1.52	0.008	0.20	0.69	17.53	855	1272
300	37	0.060	1.52	0.008	0.20	0.76	19.30	1022	1521
350	37	0.060	1.52	0.008	0.20	0.79	20.07	1191	1772
400	37	0.060	1.52	0.008	0.20	0.85	21.59	1345	2001
500	37	0.060	1.52	0.008	0.20	0.94	23.88	1668	2482
600	61	0.070	1.78	0.009	0.23	1.10	27.94	1994	2967
750	61	0.070	1.78	0.009	0.23	1.16	29.46	2465	3668

---
