Ck6140 Ck6150 Ck6180 China Direct Supplier Horizontal Flat Manual Turning Metal CNC Lathe Big Machine CNC Lathe with Siemens Fanuc GSK CNC

Product Description

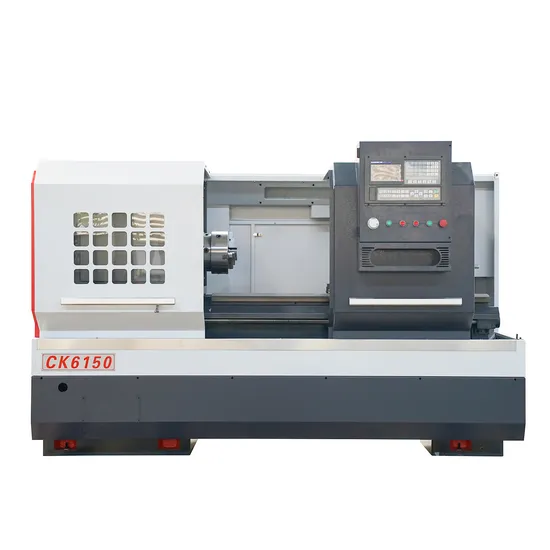

CK6140 CK6150 CK6180 China Direct Supplier Horizontal Flat Manual Turning Metal CNC Lathe Big Machine CNC Lathe
Product Description

CNC Lathe Machine Specification

Item	CK6140	CK6150
Max. swing diameter over bed	Φ400mm	Φ500mm
Max. swing diameter over cross slide	Φ245mm	Φ280mm
Processing length	750/1000mm	750mm/1000mm/1500mm
Width of the bed	330mm	400mm
Diameter of spindle bore	Φ60mm	Φ52/80/105mm
Spindle taper	MT6	1:20/Φ90
Spindle nose	A2-6	Type of spindle head D-8
Spindle speed	200-2500rpm	150-2000rpm
Chuck size	250mm	250mm
Tool holder	4 station	4 station
Tool bar section	25X25mm	25X25mm
Main motor power	5.5KW	7.5KW
X/Z axis position accuracy	0.02/0.025mm	0.02/0.025mm
X/Z axis repeat accuracy	0.01/0.012mm	0.01/0.012mm
X/Z axis torque	5/7.5N.M	6/10N.M
X/Z axis fast feeding speed	6/8 M/MIN	8/10 M/MIN
Tail stock sleeve travel	120mm	150mm
Tail stock taper	MT4	MT5
Dimension	2320/2570*1400*1700	2410/2660/3160*1560*1730
Weight	1800/2000KG	2800/3200/3500KG

Standard configuration:
1) System:GSK980TC3, servo motor and drive;
2) Manual 3-jaw chuck;
3) Four station electric tool post ;
4) Manual tailstock;
5) Cooling system;
6) Lighten system;
7) Automatic lubrication system;
Optional configuration:
1) CNC system: Siemens, Fanuc, KND, etc.
2)Hydraulic chuck, pneumatic chuck .
3)Hydraulic tailstock, pneumatic tailstock.
4) 6/8station electric tool post;
5)Automatic Chip conveyor; Voltage
380V/220V/415V/480V 3phase
220V single
Important Notice:Before place order, please confirm with our sales about your local electrical voltage. Detailed Photos

Company Profile

We have CNC Lathe CNC Machining center CNC milling machine, heavy duty CNC Lathe, CNC Alloy Wheel CNC Lathe,
if you need, no hesitate contact with Sunny!

---
