Supply Rubber Open Mixing Mill/Fine Quality Rubber Open Mixer in Chile

US$4,200.00-45,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XK-250/XK-360/XK-400/XK-450/XK-560
Automatic Grade
Automatic
Power Source
Electric
Type
Open Mixing Mill
Type of General Rubber Machinery
Mixing Roll
Type of Tire Machinery
Tire Shaping and Curing Press
Certification
ISO/Ce/BV
Machine Type
Rubber Open Mixing Mill
Power
5.5-245kw
Voltage
220-510V
Rollers
2
After-Sale Service
Engineer Overseas Available
Working Experience
More Than 20 Years
Machine Color
Customized
Transport Package
Exporting Standard (Wooden Box Packing)
Specification
CE/SGS/BV/ISO9001/; 2008
Trademark
EENOR
Origin
Qingdao
HS Code
84778000
Production Capacity
500 Set/Year

Product Description

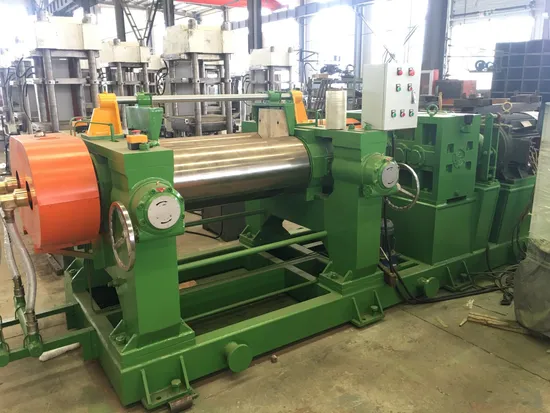

Supply Rubber Open Mixing Mill/Fine Quality Rubber Open Mixer In Chile
Specification

Type
Xk-160
Xk-250
Xk-300
Xk-400
Xk-450
Xk-560
Xk-660

Working diameter of rolls(mm)
160
250
300
400
450
560
660

Working length of rolls(mm)
320
620
750
1000
1200
1530
2130

Front roll surface speed(m/min)
8.95
14.1
15.1
18.65
24.26
27.72
28.6

Friction ratio
1:1.35
1:1.17
1:1.27
1:1.27
1:1.27
1:1.2
1:1.24

Max.nip(mm)
4.5
8
8
10
15
15
15

Capacity per.batch(kg)
1-2
8-15
15-20
18-35
25-50
35-50
165

Motor power
(kw)
5.5
18.5
22
37
55
90
245

Overall dimension(mm
1380*860
*1320
3400*1500
*1800
3580*1550
*1695
4350*1850
*1785
5200*2380
*1840
5845*2284
*1978
7465*3662
*2080
