Product Description
Product Description
Product Description

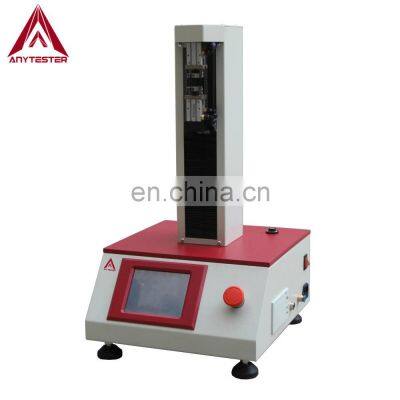

HY005E Single Fiber Strength Tester is used to determine the breaking load, elongation at breaking load, load at specified elongation, elongation at specified load, creep, etc. of natural fiber, chemical fiber, metal wire, hair, carbon fiber, etc.
Standard
ISO 5079
| ISO 11566
| QB/T 2173
| ASTM D 3822
|
BS 4029
| GB/T 14337
| GB/T 9997
| GB/T 13835.5
|
Note: For more standards, please contact us!
|
|
|
|
Specification
Item
| HY005E
|
Load range
| 1000cN
|
Resolution
| 0.01cN
|
Load error
| ≤±0.05%F·S
|
Load precision
| ≤±0.5% when 1%~120% of load range
|
Data collection frequency
| ≥1000Hz
|
Test speed
| 2～200mm/min
|
Gauge length
| ≤200mm
|
Elongation resolution
| 0.01mm
|
Min. clamping distance
| 0.1mm
|
Clamping distance set method
| Digital set or auto set
|
Unit conversion
| N, cN, kgf, mm, lb, in
|
Dimension
| 400*400*600mm
|
Power Supply
| AC 220V 50Hz
|
Weight
| 30kg
|
Details & Features
★Test functions:F1. Tensile testF2. Elasticity test at specified elongationF3. Repeated tensile test at specified elongation with settable two stop timeF4. Elasticity test at specified loadF5. Repeated tensile test at specified load with settable two stop time★Dynamic data collection frequency more than 200Hz, will not lose peak value, more objectively reflect the material mechanics performance;
★LCD touch screen, software in both English and Chinese, easy and convenient to operate;
★High reliability and long service life;
★Linear density can be set freely;
★NXP 32-bit industrial-grade single-chip microcomputer control, 16 bit A/D converter, anti-interference is very good, data transmission fast;
★The test data (max, min, average, etc) display in each test;
★Pre-force can be set freely;
★The force calibration adopt digit calibrate, convenient and clear;
★With built-in mini-printer;
★With pneumatic clamp.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging
|
|
Dimensions
| 1400*900*1600mm
|
Weight
| 200kg
|
Packaging Details
| 1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
Payment
Payment Term
|
T/T
| EXW
|
30% T/T in advance, paid the balance before shipment
|
|
| FOB
|
|
|
| CFR(C&F)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
| CIF
|
|
| L/C
| L/C amount above 50,000 usd, we can accept L/C at sight
|
|
| West Union
|
Amount lower than 5000usd
|
|
| West Union
|
|
|
Delivery Time
| 7~10days after receiving payment for one container
|
|
|
