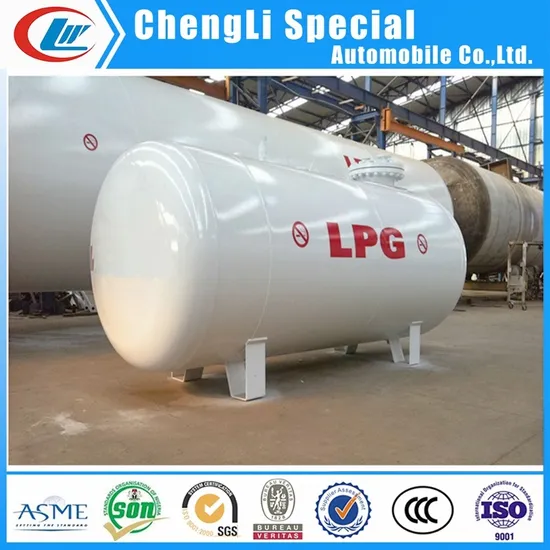

Mini 5cbm 2.5mt Carbon Steel LPG Bullet Gas Tank Price

Product Description

Mini 5cbm 2.5MT carbon steel LPG Bullet Gas Tank price
Product Description

Lpg Storage Tank Equipped:
1.Safety valves can be equipped with lpg storage tank/ lpg tank, lpg storage tanker, lpg tanker, gas storage tank, bulk lpg storage tanks, bulk storage lpg tanks, lpg transport tank semi trailer , lpg transportation trailer , propane semi trailer , propane tank trailer , lpg gas tank container , gas tank container and lpg container.
2. LPG stands for Liquified Petroleum Gas. LPG is a hydrocarbon produced from the processing
of natural gas and the refining of crude oil. Commonly called "propane," it is used for cooking
on grills and stoves, heating homes and even as a power source for automobiles.
It is relatively safe, but proper handling of LPG tanks will help to increase the safety margin.
3. Liquefied petroleum gas or liquid petroleum gas (LPG or LP gas), also referred to as simply propane or butane, is a flammable mixture of hydrocarbon gases used as a fuel in heating appliances, cooking equipment, and vehicles.
4. LPG is prepared by refining petroleum or "wet" natural gas, and is almost entirely derived from fossil fuel sources, being manufactured during the refining of petroleum (crude oil), or extracted from petroleum or natural gas streams as they emerge from the ground. It was first produced in 1910 by Dr. Walter Snelling, and the first commercial products appeared in 1912. It currently provides about 3% of all energy consumed, and burns relatively cleanly with no soot and very few sulfur emissions.
LPG Storage Tank Exported Countries
Georgia,Kazakhstan,Algeria,Australia,Bahamas,Vietnam,Angola,Afghanistan,Cameroon,Djibouti,Ghana, Georgia,Guinea,Indonesia,Iraq,Kenya,Libya,Nigeria,Pakistan,Zambia,United Arab Emirates,Peru,Chile, ect.

Product Parameters

Item			Unit		Specification
Loading object					CLW25-12-12
Material					Propane Gas
Designed loading Parameter			Option		Q345R, 16MnIII, Q370R
			Kg/m3		420~ 500
Dimension			mm		8900x2300x3200 mm
Net Weight			Kg		24960
Designed Pressure			Mpa		1.77
Max Working Pressure			Mpa		<=1.6
Designed Temperature			C		-20~50
Volume			m3		60
Body thick			mm		12
Cover thick			mm		12
Man Hole			mm		450
Top Safety Valve Port			mm		80
Life Year			Year		10
Input and output
Liquid input Port			mm		DN50 ( 2 Inch)			2.5Mpa
Liquid Output Port			mm		DN50 (2 Inch)			2.5Mpa
Bottom Air gas input Port			mm		DN50 (2 Inch)			2.5Mpa
Waste Liquid Output Port			mm		DN50 (3 Inch)			2.5Mpa
Top Gas Let Out Port			mm		DN50 (3 Inch)			2.5Mpa
Liquid Level Indicator Port			mm		DN20			2.5Mpa
Essential Device for option
Safety Valve, Temperature Gague, Pressure Gauge
Option~ flange
Production Standard
China GB 150 Pressure Vessel Manufacturer Standard, Or ASME Standard
Designed Valid Year, at least 10 year

Detailed Photos

Company Profile
Hubei Chengli Group is located in Chengli auto industry park, Pingyuan town, southern suburb of Suizhou, Hubei. Suizhou is known as Shennong's native land, chime's hometown and "China's Special Vehicle Capital".It is also the manufacturer of domestic well-known special vehicles used in landscape, petrochemical industry, the municipal environmental sanitation, and pressure vessel.The registered trademark of which is "Chengliwei", and the product code is "CLW". It's the important partner of Dongfeng and Jiefang. And mainly engaged in manufacturing all kinds of special vehicles and selling full vehicle and fittings to large-scale manufacturers.The company is a hightech enterprise in hubei province and has passed the certification of ISO9001,ISO16949,GJB9001 and CCC authentication of automobile products.
Our Advantages
Competitive Price and Excellent Quality
More than 10 years' experience as a manufacturer CCC,ISO,BV ASME certification Perfect after-sale service Customized products available with us Export covering More than 50 countries and regions 300 kinds of trucks and trailers 100 Senior welder and 15 senior engineers for your service Good cooperation with 30% regular customers Annual production value topped 1500,000,000 RMB (240,000,000 US dollars) per year Packaging & Shipping
Delivery days :7-10days
Shipping : naked waxing coat ;small one into 20` GP or 40` GP ,big type can be carried by bulk carriers or ro-ro ship or you pick
Payment terms :30% depoisite T/TOur company offer Transportation insurance for customer. To ensure customer's prdocts arrival at the destination new and safe.
It can be assembled and disassembled
