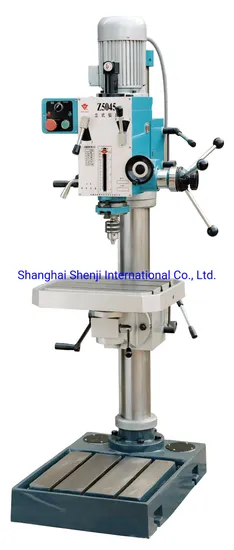

Vertical Drilling Machine Z5032 Z5040 Z5045

Product Description

VERTICAL DRILLING MACHINE Z5032 Z5040 Z5045

SPECIFICATION	MODEL
ITEM	Z5032	Z5040	Z5045
Max.drilling capacity	32mm	40mm	45mm
Spindle taper	M.T.3 or R8	M.T.4	M.T.4
Spindle travel	130mm	130mm	130mm
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Min.distance from spindle axis to column	283mm	283mm	283mm
Max.distance from spindle nose to worktable	725mm	725mm	725mm
Max.distance from spindle nose to stand table	1125mm	1125mm	1125mm
Max.travel of headstock	250mm	250mm	250mm
Swivel angle of headstock(horizontal/perpendicular)	360°/±90°	360°/±90°	360°/±90°
Max.travel of worktable bracket	600mm	600mm	600mm
Worktable size of avaliablity	380×300mm	380×300mm	380×300mm
Swivel angle of table horizontally	360°	360°	360°
Table leaned	±45°	±45°	±45°
Size of stand worktable of avaliability	417×416mm	417×416mm	417×416mm
Motor Power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Packing size	1850×750×1000mm	1850×750×1000mm	1850×750×1000mm
Loading amount	18pcs/20'container	18pcs/20'container	18pcs/20'container

FEATURES:
*Drilling, milling and tapping;
*Head swivels 360° horizontally;
* Headstock and worktable up&down perpendicularly;
*Super highcolumn;
*Precision micro feed;
*Positive spindle lock;
*Distinct auto device for releasing tools,operating very easilly;
*Gear driven,lower noise.
STANDARD ACCS.:
*Wedge
*Tie rod
*Washer
OPTIONAL ACCS.:
* Double speed motor;
*Bench vice 90mm,125mm,160mm;
*Milling holder
*Drill chuck and arbor;
*Milling chuck(8pcs)
*Heightened column'
*Coolant system;
*Working lamp;
*Auto-tapping system;
*Boring bar;
*Clamping kits(58pcs)

---
