Armacell Class 0 COB-40*076 Excellent Quality Foam Rubber Pipe Heat Insulation Tube

Product Description

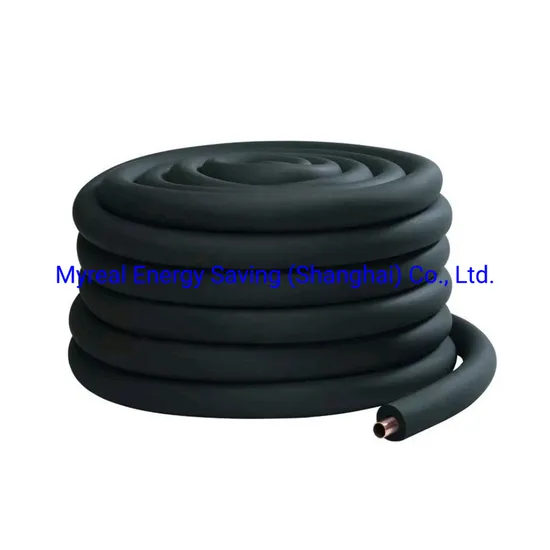

Product Description ArmaFlex Class 0 is a flexible insulation material that reliably protects against water vapour ingress due to its closed-cell structure. No additional water vapour barrier is required.

Product Parameters

Property	Value /Assessment						Standard / Test Method
Temperature Range
Service Temperature	Max. service temperature			+ 105ºC		+ 85ºC if sheet or tape is glued to the object with its whole surface.	When the service temperature is under -200ºC, please contact our technical department
	Min. service temperature			- 50 ºC
Thermal Conductivity
	θm	-20	+/- 0	+40		[ ºC ]	GB/T 10294, GB/T 10296 DIN52612, DIN52613
	λ ≤	0.032	0.034	0.039		[ W/(m·k) ]
Water Vapour Diffusion Resistance
Water vapour diffusion resistance factor	μ > 10,000						GB/T 17146 DIN52615
Water vapour permeability	≤ 1.96 x 10-11g/(m·s·Pa)
Fire Performance & Approvals
Surface spred of flame	Class 1						BS 476 Part 7: 1997
Fire performance according to building regulations	Class 0						BS 476 Part 6: 1989 UK Building Regulation
Burning Behaviour of Building materials and products	Class B1						GB 8624-2012
Flammability	V-0, FM Approved						UL 94, FM 4924
Practical fire behaviour	Does not generate flaming droplets
Others	Registered by the Fire Services Department of Hong Kong for the entire range of thickness. Product conforms to the requirements for building products under the Fire Safety and Shelter Department, Singapore.

Packaging & Shipping Paper Carton or plastic bags
Minimum order quantities and different lead times may apply.Please confirm with our customer service representative when place an order. Self-adhesive option available upon request. Minimum order quantities and different lead times may apply. Awards & Certificates
Applications
