Product Description
Product Description

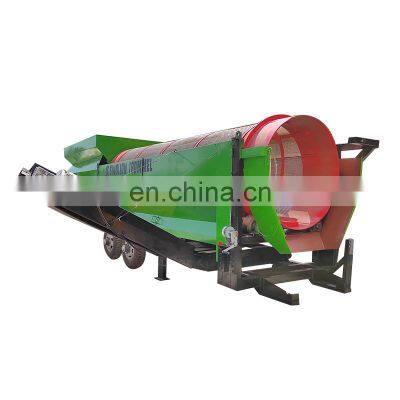

Mobile Trommel Screen Waste Rotary Drum Screen For Sand WashingWast Trommel ScreenThe mobile trommel screening machine is a screening equipment developed by our company for small and medium-sized and light materials such as compost, wood chips, cow dung, sand and gravel.It has the following characteristics:1. Smooth operation and low noise;2. Simple structure, maintenance Convenient;3. The screen holes are not easy to block;4. The screening efficiency is high;5. The screen has a long service life and is easy to replace.Structure and PrincipleThe mobile trommel screen is mainly composed of silo, screen drum, idler assembly, transmission part, discharge conveyor, brush, underframe, rear axle, traction, diesel generator, control cabinet, protective cover and other parts.The basic working principle of the trommel screen: the material is poured into the silo by the loader, and transported to the trommel screen by the conveyor on the silo, and then the motor reducer drives the idler to rotate the screen cylinder, and the material particles in the screen cylinder follow the screen. The drum rotates to a certain height, is thrown and dropped by gravity, and is filtered through the screen to form a screening. Finally, the screened materials are transported to different places by different conveyors.Product NameMobile Trommel ScreenProduct TypeMTS0818MTS1022MTS1230MTS1550Trommel Diameter0.8m1m1.2m1.5mTrommel Length1.8m2.2m3m5mTrommel Power2.2kw2.2kw4kw5.5kw*2
>>
