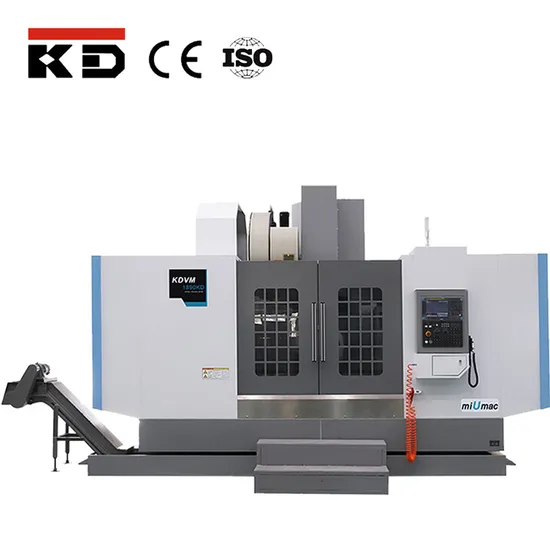

| MODELS | KDVM1890L |
| TRAVEL | |
| X axis | 1800mm |
| Y axis | 900mm |
| Z axis | 700mm |
| Spindle center to column | 1000mm |
| Spindle end to table | 180-880mm |
| TABLE | |
| Table size | 2000×900mm |
| T-slot(width×number×space) | 22mm×5×165mm |
| Max. table loading | 1900kg |
| SPINDLE | |
| Taper bore of spindle | BT50/φ190 |
| Spindle power | 18.5/22kw |
| Spindle speed | 6000rpm |
| FEED | |
| X/Y/Z fast travel speed | 20/20/15min |
| Torque axis motors | 38Nm |
| ATC | |
| Tool number | 24 |
| Time (tool-tool) | 3s |
| ACCURACY | |
| Positioning accuracy for X/Y/Z | ≤0.024/0.02/0.016mm |
| Repeatability positioning accuracy for X/Y/Z | ≤0.008/0.006/0.005mm |
| OTHERS | |
| Overall dimension (LxWxH) with auto conveyor | 5650x3530x3300mm |
| Net weight | 15000kg |
