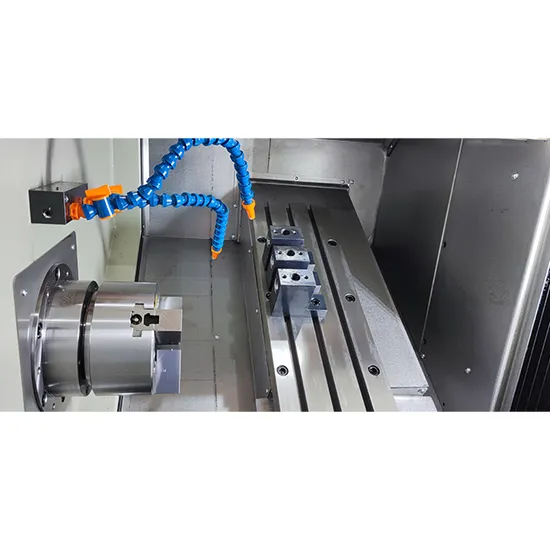

High Rigidity Metal Gang Tool CNC Lathe with Siemens Fanuc CNC Controller in Stock

Product Description

Product Parameters

Item	Specification	Unit	S36
Capacity	Chuck size	/	6"
	Max. swing dia. over bed	mm	Φ460
	Max. swing dia. over slide	mm	Φ130
	Max. turning length	mm	330
	Max. turning dia.	mm	Φ300(disc type);Φ125(shaft type)
Spindle	Spindle bore	mm	Φ56
	Spindle end type	/	A2-5
	Spindle speed	rpm	5000
	Max. bar through dia.	mm	Φ44
	Spindle motor power	kw	5.5
X/Z axes	X axes travel	mm	340
	Z axes effective travel	mm	330
	X/Z axes rapid moving speed	m/min	28
	X/Z axes ball screw dia./pitch	mm	32/12
	X/Z axes linear guideway width	mm	30/35
Tool turret	Tool turret type	/	Gang tool
	Tool qty	/	5
	Toolshank size	mm	20×20, Φ25(32*)
Tailstock	Tailstock	/	N/A
Accuracy	Ex-circle finish turning accuracy	/	IT6
	Finish turning roughness	mm	Ra0.4~1.6
	Finish turning roundness	mm	≤0.003
	Positioning accuracy(X/Z)	mm	0.005/0.008
	Repeat positioning accuracy(X/Z)	mm	0.002/0.004
Others	Coolant pump power	w	480
	Coolant flow	m³/h	2.5
	Overall size	mm	1680/2580×1600×1550 (exclude/include chip conveyor)
	N.W.	kg	2300

Main parts list

Item	Brand
CNC controller	GERMANY-SIEMENS/JAPAN-FANUC
X,Z axes driver & motor	GERMANY-SIEMENS/JAPAN-FANUC
Spindle driver & motor	GERMANY-SIEMENS/JAPAN-FANUC
Spindle unit	TAIWAN-VOLIS/KENTURN/OWN-MADE
Ball screw	TAIWAN-PMI/HIWIN
Ball screw bearing	JAPAN-NSK/NTN
Linear guideway	TAIWAN PMI/HIWIN
Lubrication system	TAIWAN-ISHAN
Rotary oil cylinder & chuck	TAIWAN-AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
Coolant pump	JOINT-VENTURE
MPG	USA-HEDSS

Item	Brand
Tri-color indication lamp	KOREA-QLIGHT
Breaker	FRANCE-SCHNEIDER
AC contactor	FRANCE-SCHNEIDER
Relay	JAPAN-OMRON
DC switch power supply	TAIWAN-MEANWELL
Terminal block	GERMANY-WEIDMULLER
Synchronous belt	USA-GATES
Synchronous belt wheel	TAIWAN-PTP
Nuts	TAIWAN-YINSH
Shaft coupling	GERMANY-KTR/R+W
Chip conveyor & chip bucket	TAIWAN-WANHE
Coolant pipe	TAIWAN-WEIDING

Company Profile
Wuxi Fagor Technology Co.,Ltd.is specialized in CNC machine tools accessories .The main products of our company are 4 axis rotary table,5 axis rotary table,water pump, chuck, coupling, end mill grinder,chipping machine,cutter barrel,three-color lamp,knife tower and other accessories With high precision and full varieties are deeply trusted and appreciated by customers.At the same time we have a strong sales team and experienced core service team.we are ready to provide CNC machine tool accessories one-stop solution for you,looking forward to cooperating with you and going to a win-win situation.
FAQ
Q: How long is the quality guarantee?
A: One year guarantee.
Q: How long is the delivery time?
A: Generally it is 3-7 days if the goods are in stock. If the goods are not in stock, it will take 8-20 days.
Q: Do your products have a factory inspection before shipment?
A: 100% self-inspection before shipment.
Q: Can you provide some free samples?
A: Actually we have a very good price principle, when you make the bulk order then cost of sample will be return to you.
Q: What kind of packing do you send?
A: We use high quality cartons, internal environmental protection buffer material.
Q: What is our loading port?
A: Usually in Shanghai port, or apply for other ports.

---
