Sfb30300L Split Pressure Solar Heating Hot Water Heater with Heat Pipe Solar Collector

Product Description

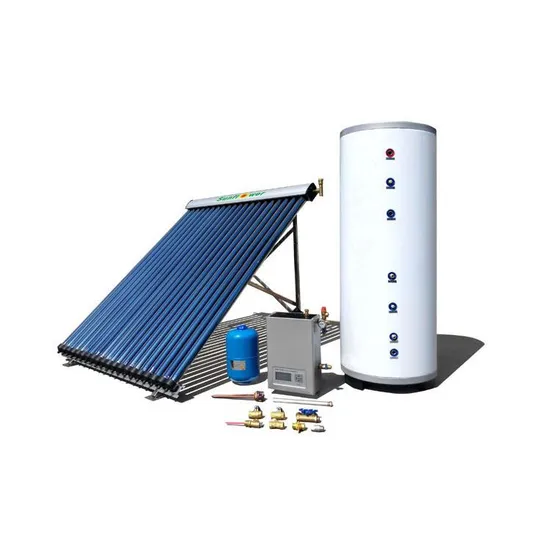

SFB30300L 300L Split Pressure Solar Heating Hot Water Heater with Heat Pipe Solar Collector

SFBS30300L Split pressure heat pipe solar water heater
SFBS30300L is split pressure solar water heater. The solar vacuum collector absorbs solar energy and passes heat through the heat pipe to the flow path. Under the drive of the circulating pump, the working substance is heated as it passes through the runner, the heat is passed to the tank, pool or heat exchanger.
This energy can be used for domestic and commercial hot water heating, hot water supply for hotels and hospitals, pool heating, space heating, solar water desalination and thermal power generation.
Size of Product

Name	Model and specification	Quantity
Solar collector	Model:SFB305818, 30 tubes heat pipe solar collector Heat pipes:¢58mm*1800mm*30pcs Collector Box and frame:aluminum alloy and SS Heat Preservation Layer: Rock Wool	1 set
Pressurized tank	Model:SFO300CCapacity: 300L Working pressure: 0.6Mpa Test pressure: 0.9Mpa Inner tank: SUS3041.2mm Outer tank: galvanized sheet 0.5mm Polyurethane foam layer: 5cmWith single coil copper pipe (Φ16mm, thickness 1mm)	1 set
Integrated work station	Model:SR961S Circulation Pump: WILO RS15 / 6, low meter, Pressure meter, Overflow Valve, etc	1 set
Expansion vessel	Capacity: 8Liter Pre-charge pressure 0.2Mpa Max pressure: 1.0 Mpa,	1 set
Pipe fitting	Include Air Bleeder, Mounting Strip Filter Valve, Connector between two collectors.	1 set
Package/volume/weight	Carton/1.24cbm/180kg
Packing quantity	22sets/20GP,59sets/46GP,54sets/40HQ

Feature
Pressure type solar water heater, hot water outlet pressure is high, bath is more comfortable and relaxed.Diversified water tank structure design can be used in combination with gas water heater, heat pump, electric water heater, etc.It can maximize the utilization of solar energy and reduce the energy cost for several days.
The hot water storage tank is installed separately from the solar collector. The heat collector is installed on the roof or the ground. The water tank is placed in the courtyard or indoor, which is convenient to install and safe to use.
The heat pipe collector is made of high-quality materials and exquisite craftsmanship, safe and stable operation, and does not require maintenance costs. Product Advantages 1. Split pressure type solar water heater, perfect domestic hot water supply center.
2. Powerful hot water pressure, bath is more comfortable and relaxed.
3. The solar collector and the building are perfectly integrated.
4. Good working principle design, maintenance and use of low cost.
5. Seamless connection with gas, heat pump, and boiler etc.
6. Efficient solar thermal transformation system
