a Type Chicken Layer Cage/Coop for Africa Poultry Farm

Product Description

We are manufacturer and exporter of complete set automatic chicken house equipment.
Complete set automatic floor broiler chicken house equipment, including silo, pan feeder line, nipple drinker line,
ventilation fan, cooling pad, heater and controller.
Complete set automatic cage for broiler chicken house.
It has CE and various certificates, and its business scope covers more than 30 countries and regions.

Our poultry cages include full automatic systems for feeding, drinking, egg collecting machine, manure cleaning
machine and environment control.new design chicken breeding poultry battery chicken transport cages.


We also could provide customized poultry equipments.
The Equipments adopt hot-dipped galvanized with anti-corruption performance and long lifespan.
new design chicken breeding poultry battery chicken transport cageshot galvanizing chicken breeding layer cage for sale.
A-type layer breeding equipment

Plate:
275g made of aluminum zinc plated plate, corrosion-resistant,customized high-strength model, durable and long-lasting.
The manure belt type manure collection machines is designed for A frame cage systems which has manure belts under the cages.
The manure dropping from the cages onto the manure belts, and then delivered to the outside of the chicken house.
Barrier:

Open, with good ventilation performance,
welded with 2.9mm thick steel wire, sturdy and durable.

Egg collection system
It is made by egg collection machines, egg collection belts and egg belt clips. Vertical egg collector, surface spray treatment, easy to clean and durable.


All the materials of the mesh are welded with zinc aluminum alloy thick coated steel wire,
which is precisely expressed as: 10% aluminum+90% zinc alloy coating on the surface of the steel wire.
After salt spray testing (5% salt water immersion test), the corrosion resistance performance reaches a lifespan of 35-45 years.

There are two types of laying hens: ring-shaped and intermittent laying hens;
The connection between the egg collecting machine and the egg conveying belt is equipped with a soft egg removal and collection device.
The broken eggs and soft eggs delivered leak into the egg tray below. The egg tray has large space and is easy to collect.
Automatic feeding system

The feeding position is equipped with a
homogenizer, can spread the feeding evenly.

Feeding trough: The feed trough is made of PVC or Aluminized Magnesium Zinc plate material, with reliable quality and small seams with high straightness
The trough support is made of Aluminized Magnesium Zinc plate , which is sturdy and reliable.The plug-in connection structure makes the slot body sturdy, stable, and precise, and the cage frame more reliable.
Drinking pipe

all-round (360 degress)water and high sensitvity.
The drinking pipe adopt good quality PVC material,make it anti -oxidation and good toughness.
Light resistant water pipe prenent alge in it Square structure, inner smooth and easy to clean,more water capacity.

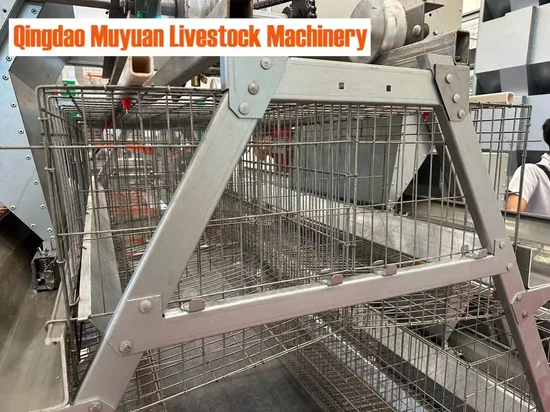

A-type Layer Cage
Main data

model	length	depth	front height	back height
A	1870mm	370mm	380mm	330mm
B	1950mm	450mm	430mm	330mm
C	1870mm	400mm	400mm	350mm
D	1800mm	500mm	400mm	350mm

Egg belt
1.Adopt high quality polypropylene, with high strength, high toughness, low elongation , to resist bacteria and fungi, but not suitable for the growth of Salmonella.
2.Non-absorbent unlimited by the humidity and temperature, has adaptability for climate change.

3.V-form of knifing makes the eggs not easy to slip in the conveying, reduce the damage rate.

4.Suggestion, ultrasonic welding first, and then sew and connect the four sides of end beit . It will be more stable.

FAQ:
1. Q: Can the products be customized?
A: We can produce the products according to your detailed requirements.
2. Q: What's the MOQ of the products?
A: we always suggest you the economic quantities for you to save your budgets.
3. Q: What is the material of the cages and what is the thickness of the wire?
A: Our cages have cold galvanized wire kind, and hot galvanized wire kind. Different parts of the cage, we make the different wire diamater, they ranges from 3.6 to 2.3.
4. Q: Do you have other poultry equipment?
A: We have feed silo, warm furnace, temperature controller, medicine adding machine, incubator, feed mill, egg tray and so on.

---
