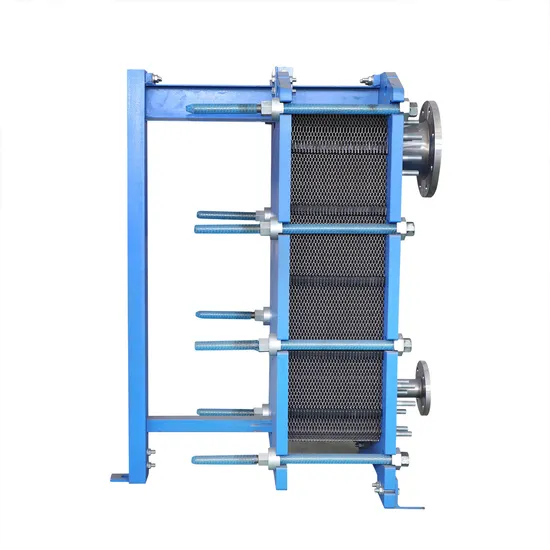

Plate heat exchanger is a new type of high-efficiency heat exchanger composed of a series of metal sheets (heat exchange plate bundles) with a certain ripple shape and a frame. The heat transfer plate and sealing gasket form a plate bundle, with corner holes at the four corners of the heat transfer plate. The sealing gasket and heat transfer plate are installed in the frame between the fixed pressing plate and the movable pressing plate, and clamped with clamping bolts. Plate and sealing gasket,Plate heat exchanger is a new type of high-efficiency heat exchanger composed of a series of metal sheets (heat exchange plate bundles) with a certain ripple shape and a frame. The heat transfer plate and sealing gasket form a plate bundle, with corner holes at the four corners of the heat transfer plate. The sealing gasket and heat transfer plate are installed in the frame between the fixed pressing plate and the movable pressing plate, and clamped with clamping bolts. Plate and sealing gasket,
Structural flowchart of plate heat exchanger:
1- Fixed clamping plate, 2- Connection port, 3- Shim, 4- Plate, 5- Active clamping plate, 6- Lower guide rod, 7- Upper guide rod, 8- Clamping bolt, 9- Pillar,
Seal the fluid channels and guide the fluid to flow alternately to their respective channel seals. These connecting pipes are aligned with the channel holes on the same plate and connected to the external pipelines of the two liquids for heat exchange. The heat transfer plate and the movable clamping plate are suspended below the top bearing beam and aligned and positioned by the bottom crossbeam.
