Semi Automatic 5L plastic bottle blower machine / stretch pet blow molding Machine

Product Description

Product Description
Semi Automatic 5L plastic bottle blower machine / stretch pet blow molding Machine
Product Description
Specifications:
GD-C1 Semi-automatic water bottle blowing machine
CE approval
Speed: 300pcs/h for 5000ml pet bottle
Volume:2500-5000mL
Brief introduction of water bottle blow molding machine:
1.GD-C1 Semi automatic blow moulding machine,is CE standard
2.Produce bottle from 3L to 10L(2 cavity),PET bottle,for mineral water bottles,soda bottles,cola bottles ,and hot fill bottles
3.Advanced PLC control system with a use-friendly panel and time-control precision of PLC up to 0.01 second
4.Use infrared heating lamps,penetrating power strong,embryo heated while rotation, orbital revolution,heating uniformity,rapid and reliable
5.Independent Temperature Control for different heating lamp to get ideal preform heating results
6.Each machine has a saftey self-locking device,when a process have problem,the program will automatically switch to a safe state
7.The bottle scrap rate less than 0.2%
8.Operated only by one person without special training
9.Simple installation & startup adjustment

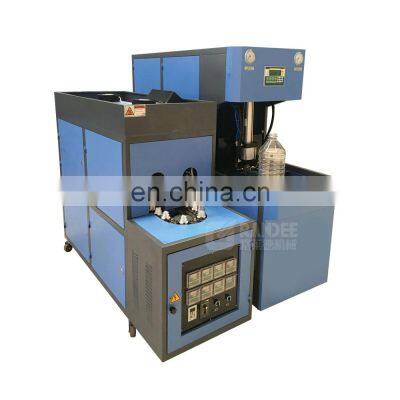

Semiautomatic One cavity or two cavity 5 L blowing machine
Two cavity 5L bottle blowing machine with 600BPH capacity
Bottle Preform Preheating datas setup interface
Heater
One cavity mold
Main technical parameter:

Type	Item	Unit	GD-C1 semi automatic blow molding machine
Container	Product material	/	PET
	Volume	L	0.5-5L(1 cavity) 6L-10L(1 cavity)
	Theoretic output	BPH	300BPH for 5L pet bottle
	Preform length	mm	15-300
	Preform inner diameter	mm	15-100
	Max mould plate dimension	mm	450*550
	Max mould thickness	mm	450
Molding	Clamping force	KN	120
	Mould opening stroke	mm	350
	Blowing air pressure	Mpa	<=3
	Working pressure	Mpa	<=1
Machine size and weight	Main machine weight	T	0.7
	Main machine dimension	cm	175*75*170
	Heater dimension	cm	187*63*145
	Heater weight	T	0.28
	Power	kw	14

Related product

	RO System This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr. This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.
Water filling machine The automatic monoblock water machine is mainly used for producing PET bottled mineral water, pure water and non-carbonated drink, and washing,filling,screwing is integrated in one unit, short the water contacting with outside, improve the sanitation condition,production capacity and economic benefit.
	5L Blowing Machine with different options 1. Semiautomatic Blowing Machine for 300BPH-600BPH, from 0.2-2.25L and 2.5L-10L bottle with 1 or 2 cavities. 2.Full automatic blowing machine from 1 cavity, 2 cavity, 3 cavity, etc from 800BPH to 2000BPH for 5L bottle.
Automatic pet film shrink packing machine Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling Speed: 8-12packages/min Power (rated/real): 26kw / 16kw Max. packing size: 420*300*350mm(LxWxH) Max. sealing size: 650mm

Company information
Workshop detail
Our team
Our exhibition
Project cases
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

---
