Over-Voltage, Under-Voltage Self-Recovery 3 Phase Protector

Product Description

1. General Introduction

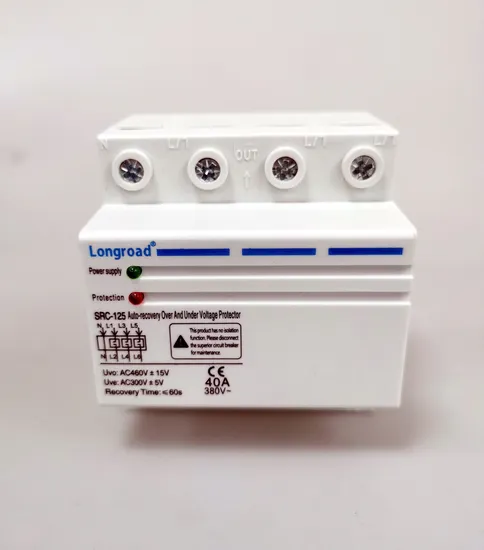

The Model SRO-125 self-recovery over-voltage and under-voltage delay protector can quickly and reliably cut off the power supply under high-voltage shock and under-voltage conditions to protect electrical appliances. When the voltage returns to the normal value, the circuit can be automatically turned on and the power supply will be restored after delay, which can effectively protect the electrical appliances from the impact of the power supply momentarily. All functions are fully automated with no special person operation is required. Two-color light-emitting diodes are selected. The power indicator is green and the protection indicator is red.
2. Main technical parameters

Specification	Rated Current(A)	Rared Voltage(V)	Rated Frequency(Hz)	Overvoltage Start Value(V)	Normal Voltage Start Value(V)	Undervoltage Start Value(V)
Two phase overvoltage	20,25, 32,40,50,63,80,100,125	230VAC	50,60	275±5	240-260	170±5
Three phase overvoltage with lack of phase/ Three-phase four line overvoltage with lack of phase		380VAC		460±15	420-440	300±15

Specification	Normal Voltage Start Value(V)	Overvoltage and Undervoltage start time(S)	Power Consumption(W)	Electrical Machinery Life
Two phase overvoltage	250,190	≤60S	<1	>100000 times
Three phase overvoltage with lack of phase/ Three-phase four line overvoltage with lack of phase	340, 440		<2

3.Installation and dimension

---
