25tubes Stainless Steel Non Pressure Vacuum Tube Solar Collector

Product Description

Product Description

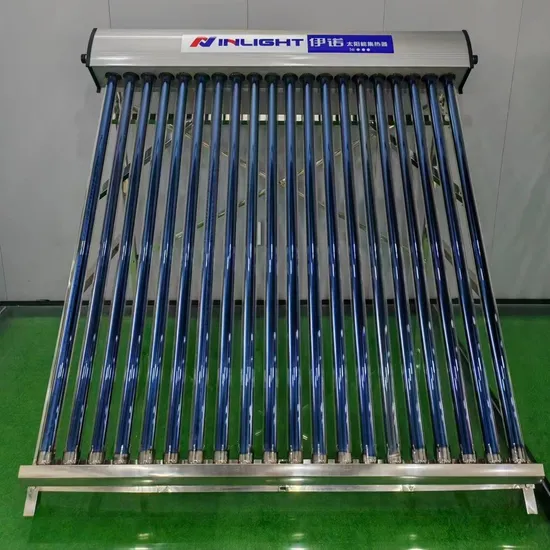

25tubes Stainless Steel Non Pressure All Glass Vacuum Tube Solar Collector
The glass tube solar collector (nonpressurized) consists of glass vacuum tube, nonpressurized manifold and supporting bracket, working principle is thermosyphon the same as integrated non-pressurized system, water is heated directly in glass tubes, taking advantage of the natural circulation due to smaller density in hot water than cold water. Series or/and parallel arrays of solar collector is usually adopted for large-scale hot water heating project.
1. Especially designed for large-scale hot water heating system, supplying hot water for dormitories, hotels, restaurants, schools, hospitals, factories, swimming pools, and some other sites requiring hot water use or house heating.
2. All-glass vacuum tube, most economical and good performance at the same time
3. Processed color steel shell and galvanized bracket make it a long lifespan as vacuum tubes
4. Easy installation and connection and little maintenance needed
Warranty: 3 years international responsibility for integrated collector exchange and 15 years for glass vacuum tube compensation due to original quality problems
Product Parameters

Vacuum tube	Spec.(mm)	Φ58×1800
	Tube (pcs)	15 / 18 20 / 25 / 30 /36
	Material	3.3 Borosilicate glass, magnetron spluttering coating
	Coating	AL/AL-ALN(H)/AL-ALN(L)/ALN or Cu/SS-ALN(H)/SS-ALN(L)/ALN
Manifold	Dimension	180*160mm, 1.0 inch inlet & outlet
	Inner tank	Food-grade stainless steel SUS304-2B 0.4mm
	Tank shell	White color steel / Silver fluorocarbon PVDF 0.4mm
	Insulation	High-density polyurethane integrated foam-forming layer
Bracket	Coated galvanized angle steel 30*30*3mm
Accessories	Stainless bolts & nuts, waterproof silicon rubber seal, dustproof rubber seal, plastic tube holder
Working pressure	≤ 1 bar
Tilt angle	0~ 90°
Hail resistance	Φ25mm diameter

Our Advantages
Competitive Advantage:
1. It is the most economical solar collector which is widely used in large-scale hot water heating system, supplying hot water for dormitories, hotels, restaurants, schools, hospitals, factories, swimming pools, and other places requiring large amount hot water application.
2. Special design with all rights reserved by INLIGHT, the arc-angle manifold makes the manifold with much more stress to strike and expansion.
3. INLIGHT glass tube collector can be connected in series-parallel arrays and used in active or passive solar water heating system with stable and reliable performance.
4. INLIGHT glass tube and manifold is anti-freezing device, the collector can be used in extremely cold area with anti-freezing system design and pipeline insulation.
5. High absorption: αs ≥ 90%, low-emissivity: εh ≤ 8%, daily average thermal efficiency ηd ≥ 50%
6. INLIGHT modularized design makes the collector more adaptable to different architecture structure and locations.
Detailed Photos

---
