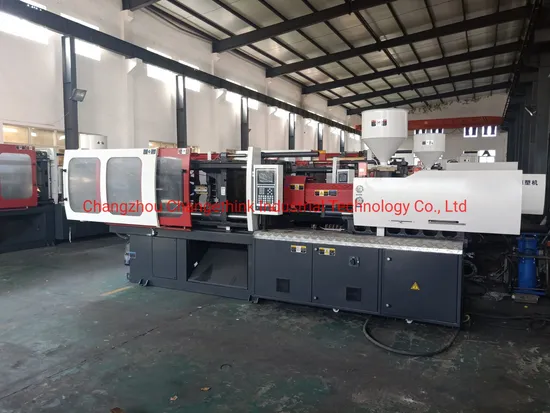

Advanced Lty-7800 Servo Type Injection Molding Equipment for Precision

US$90,000.00 1 SET (MOQ)

Basic Info.

Model NO.
LTY-7800
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
780T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years

Product Description

SPECIFICATION LTY7800
A B C D
INJECTION UNIT
SCREW DIAMETER mm 90 95 105 110
SCREW L/D RATIO L/D 23.2 22 19.9 19
SHOT VOLUME(THEORETICAL) cm3 2861 3188 3894 4273
INJECTION WEIGHT(PS) g 2603 2901 3543 3888
INJECTION RATE g/s 574 640 781 858
INJECTION PRESSURE MPa 195 175 143 130
SCREW SPEED rpm 115
CLAMPING UNIT
CLAMP FORCE KN 7800
OPEN STROKE mm 980
SPACE BETWEEN TIE BARS(W*H) mm 980x980
MAX.MOULD HEIGHT mm 1000
MIN.MOULD HEIGHT mm 400
EJECTOR STROKE mm 280
EJECTOR FORCE KN 210
OTHER
MAX.PUMP PRESSURE MPa 16
PUMP MOTOR POWER kW 37+37
HEATING POWER kW 56.7
MACHINE DIMENSION(L*W*H) m 11.2x2.37 x 2.55
OILTANK CUBAGE L 1200
MACHINE WEIGHT t 43
