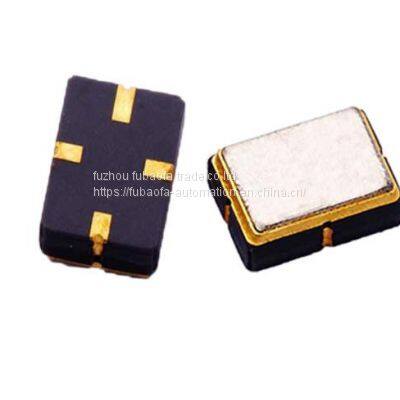

WTL 433.92MHz Saw Resonator Oscillator 5.0*3.5mm Saw Resonator Oscillator 433.92MHz

Product Details

Product Description

Product Description

ELECTRICAL SPECIFICATION
DC Voltage VDC	10V
AC Voltage Vpp	10V 50Hz/60Hz
Operation temperature	-40℃ to +85℃
Storage temperature	-45℃ to +85℃
Source Power	0dBm
Remark: We can custom made specifications.

Item			Unites	Minimum	Typical	Maximum
Center Frequency			MHz	433.845	433.920	433.995
Insertion Loss			dB		1.5	2.5
Quality Factor		Unload Q		8000	12800
		50Ω Loaded Q		1000	2000
Temperature Stability	Turnover Temperature		℃	10	25	40
	Freq.temp.Coefficient		ppm/℃		0.032
Frequency Aging			ppm/yr
DC. Insulation Resistance			MΩ	1.0
RF Equivalent RLC Model	Motional Resistance R1		Ω		21	26
	Motional Inductance L1		μH		95.995
	Motional Capacitance C1		fF		1.4014
Transducer Static Capacitance C0			pF		1.95
Pin 1 to Pin 2 Staic Capacitance			pF	1.7	2.0	2.3

---
