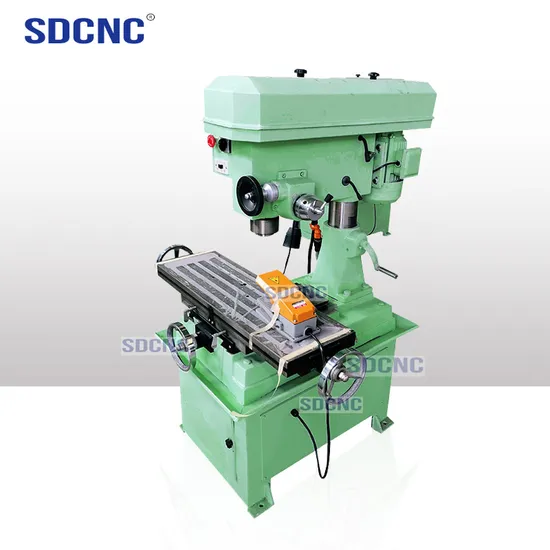

High Quality Drilling and Milling Machine Zx40h Vertical Drilling and Milling Machine

Product Description

The main performance characteristics: 1. Universal use as milling machines and drill press
2. Easily shiftable gear drive ensures power transmission without losses
3. Gear box spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual
micro-feed for the spindle quill
5. Spindle and quill with large diameter, radial and axial bearing allows use for milling machines
6. Milling table swivels horizontally, including scale
7. Dovetail guides on all 3 axes
8. Head, table height can be adjusted through gear rack
9. Forward/reverse setting through motor switch
SPECIFICATIONS

ZX40 Drilling Milling Machine Technical Date
Max. drilling capacity	Iron Ø40mm Steel Ø32mm
End milling capacity	Ø32mm
Face milling capacity	Ø80mm
Spindle taper	MT4/R8
Spindle travel	120mm
Range of spindle speed	75~1600rpm/75~3200rpm (Optional)
Head tilt left and right	±90°
Step of spindle speeds	6 /12 (Optional)
Automatic spindle feeds	0.1/0.18/0.26mm/r (Optional)
Working table size	730×210mm
Dimension base	650x450mm
Worktable X/Y-Axis travel	500×190mm
T-slot	12mm
Distance between spindle and column	260mm
Max distance spindle to table	610mm
Motor power	1500w
Cooling motor	40w (Optional)
Packing size	830×760×1850mm
N.W/G.W	340/390kg

COMPANY PROFILE
Shandong Shansu CNC Machine Tool Co., Ltd. is located in the traffic developed, economic prosperity of China's Shandong
Tengzhou City, is a professional engaged in CNC machine tool development and machinery manufacturing manufacturers. The
company with strong technical force, high quality and good reputation to win the trust of foreign trade users. Mainly produces CNC
machine tool equipment (CNC lathe, machining center horizontal machining center, vertical machining center, CNC vertical lathe,
CNC pipe thread lathe, CNC milling machine, CNC drilling machine, CNC slotting machine, CNC sawing machine and other CNC
products) ordinary lathe, milling machine series, shaper machine, metal sawing machine, slotting machine series, radial drilling
machine, vertical drill Bed and other machine tools.

---
