Have a Complete After-Sales Service System Metal Bending Machine CNC Press Brake

Product Description

Note: Dear customers, machines due to different parameters, configuration and other requirements will produce different prices, please consult customer service.
To view more products, please click on product keywords...

Main Products
Press Brake	Laser Cutting Machine	Bending Center
Shearing Machine	Handheld Laser Welder	punch and shear machine
Rolling Machine	grooving machine	punching machine

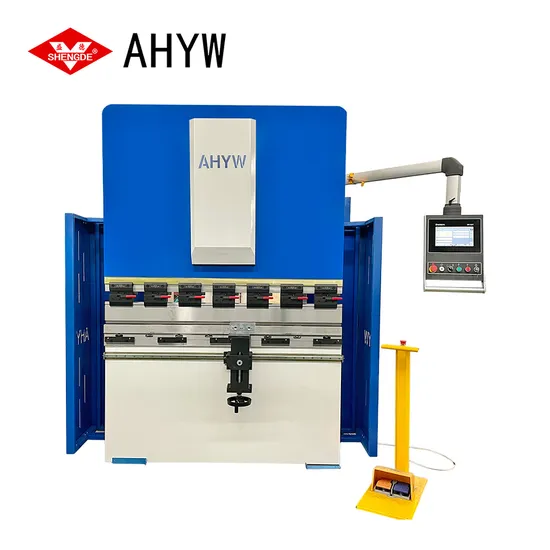

AHYW-Anhui Yawei CNC Hydraulic Press Brake Machine
Model: YWB 40T/1200Product Description Main features• Advanced proportional valve controls the hydraulic cylinders to work synchronously and achieve precise repeatability performance• Be capable of be controlled at random point within the stroke• Repeatability precision +/-0.01mm,parallelism precision +/-0.02mm• Deflection compensation table or crowning system for high precision• Holland Delem DA53T CNC together with linear scale, Bosch-Rexroth valves, servo motors and other famous brand elements to ensure excellent performance
Machine BlockYWB series cnc press brake features a rigid frame for minimum deflection under the load. Machine welding is made by welding aparatus & welding robots. After the welding,we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 5 axes machining centers for accuracy. All referance surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time.
CNC BackgaugeAHYW press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.
DA53T CNC System* "Hot-Key" touch navigation* 10.1″ high-resolution color TFT* Up to 4 axes (Y1, Y2 + 2 aux. axes)* Crowning control* Tool/material / product library* Servo and frequency inverter control* Advanced Y-axis control algorithms for closed-loop as well as open-loop valves* TandemLink (option)* USB memory stick interfacing* Profile-T offline software
Details Images
Technical Parameters
Packing&ShippingThe normal package is water proof plastic package, the optional ply wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.If container is too tigher, we will use pe film for packing or pack it according to customers special request. According to the size and weight of machines, we will provide our customers with optimized shipping solution.

---
