180 Degree Cure Black Matte Wheel Hub Powder Coating

Product Description

180 Degree Cure Wheel Hub Powder Coating, Black Matte Wheel Powder Coating
Introduction
Traditional paint contains organic solvents (VOCs) that are harmful to the environment. The powder coating does not contain any organic solvent and is a powdery substance with the advantage of zero VOC emission, and is one of the best choices to replace traditional paint. In addition, as countries pay more and more attention to environmental protection, powder coating is one of the future development trends in the coatings industry.
In the field of automotive, the wheelbase powder coating changes from the traditional 4 coats to 3 coats, canceling the base paint and using the base powder that integrates the bottom surface, which has become a new development direction. With the use of this process, the zero VOC characteristics of powder coatings can reduce VOC emissions by about 20% during the entire coating process, reduce coating processes, increase efficiency, and increase yield.
The wheelbase powder coating developed by KINTE has high leveling and good air permeability. It is suitable for curing at 180°C, which can greatly reduce the energy consumption and production cost of manufacturers. This product has good physical properties and chemical resistance and can meet the requirements of various wheel manufacturers for high leveling, and low baking temperatures, good chemical resistance, and excellent physical properties.
Key Features:
1. Better scratch resistance. The surface of the aluminum alloy wheel hub is mostly a rough casting surface. Because the powder is solvent-free, it shows good "filling and concealing properties", and is applied to the first coating of the wheel hub to cover surface defects.
2. Better stone resistance. Because it does not contain solvents, powder coatings are not easy to sag, and it is easy to achieve "single-layer high film thickness". Compared with the complex multi-coat liquid paint process, the single-layer powder primer shows better stone resistance performance.
Application Field:

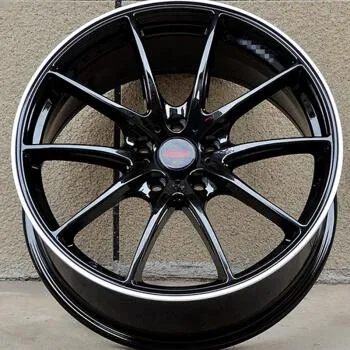

A range of automotive wheel hubs for different requirements and coating characteristics
Properties Index

Properties	Test Method	Test Result
Color	Visual inspection	Black
Appearance	Visual inspection	Smooth and flat
Gloss	GB/T 9754-2007	15-25 (60°)
Adhesion	GB/T 9286-1998	Grade 0
Hardness	GB/T 6739-2006	H (Pencil Hardness)
Impact Resistance	GB/T 1732-1993	50Kg·cm
Flexibility	GB/T 1731-1993	2mm
CASS	GB/T 10125	240 hours pass
Water Resistant	GB/T 1733-1993	240 hours pass
Salt Spray	GB/T 1771-2007	1000 hours pass

Spray Process parameters
Application Craft: Electrostatic Spraying Method (50-80Kv)
The humidity of Spraying Work Environment: ≤ 85%
Spraying Working Environment Temperature: 0°C - 35°C
Powder Supply Air Pressure: 0.2~0.4MPa
Atomizing Air Pressure: 0.01~0.1MPa
Distance between Workpiece and Nozzle: 20~30cm
Recommended Baking Conditions: 180°C/8-15min (Actual temperature of the workpiece)
Volatile Organic Compounds: Basically zero
Density: 1.2-1.7 g/cc
Theoretical Coating Area: 9-12m2/Kg
Dust Explosion Safety: Ignition point 470°C, explosion limit: 20~30 g/m3
Shelf Life: 28°C/ 6 months
Hygiene and Safety: The operator should wear a dust mask, and try to minimize the long-term contact between the skin and the powder coating. The coating attached to the skin can be washed with soap.
Company Profile:
Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), a listed enterprise on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China's technological development of environmentally friendly coatings as well as polyester resins for powder coatings!
We have gained ISO9001 and ISO14000, ISO18001, RoHS, UL certification, and QUALICOAT Certificates. Due to the excellent and stable quality, our products always enjoy a high reputation at home and overseas, and were sold to more than 30 countries.
The powder coating branch was founded in 1992, and now there are two factories (the Guangzhou factory and the Wuhan factory) with an annual production capacity of over 25,000 tons. And we have cooperated with many famous clients such as Gree, Pansonic, HITACHI, Mitsubishi, Walmart, HUAWEI, EMERSON, Hisense, Dicastal, BYD, AAG, etc.
We unremittingly stick to the business principle of "Quality is the life, adhere to first-class technology, first-class quality, first-class cost, and first-class brand". We would like to provide a complete set of services and solutions for both domestic and abroad customers and would like to go forward to a brilliant future with you together.

---
