Marine Spek Delta Bruce Danforth Bend Navy Anchor for Ship Boat

Product Description

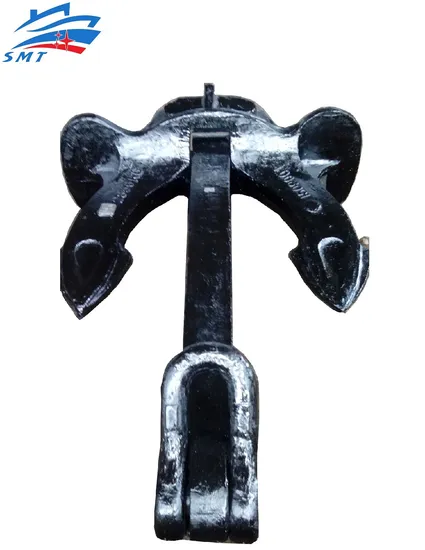

The Spek anchor has become one of the commonly used stockless anchors in the world. These anchors are available in sizes from 100kgs to 26000kgs. CB711-95 Spek anchor is used as bow anchor for sailing ships and used as positioning working anchor for engineering ships.
Detailed Photos

Sample Drawing:
Product Parameters

Nominal Weight (KG)	Size(mm)
	A	B	C	D	E	F	G	J
56	612	298	376	555	109	170	115	24
100	745	364	458	675	130	200	130	28
180	909	442	558	822	162	252	160	36
300	1075	524	660	975	194	298	192	45
428	1213	590	745	1098	215	336	215	48
675	1410	690	868	1278	250	390	255	60
750	1450	700	878	1315	256	396	255	60
910	1560	760	957	1410	273	430	255	60
970	1592	775	978	1445	284	440	280	62
1080	1650	805	1014	1495	294	455	280	62
1305	1760	858	1082	1595	313	485	310	68
1440	1818	885	1118	1645	324	505	310	68
1710	1925	940	1184	1745	343	532	340	74
1845	1975	965	1215	1785	347	546	340	74
2100	2065	1005	1268	1865	354	570	380	82
2475	2175	1062	1340	1970	385	605	385	82
2835	2265	1105	1393	2055	399	625	410	90
3550	2455	198	1508	2225	438	680	415	100
3940	2540	1240	1562	2300	453	705	450	100
4500	2655	1295	1632	2405	473	735	450	100
4840	2720	1330	1670	2465	490	755	480	110
4610	2858	1396	1758	2590	509	790	500	110
6000	2922	1426	1796	2646	515	810	500	110
6900	3062	1496	1884	2775	545	848	540	117
7800	3190	1558	1962	2890	569	884	600	130
8300	3256	1590	2002	2950	574	902	600	130
9300	3382	1652	2080	3064	606	936	630	135
9900	3452	1686	2124	3128	616	956	640	140
10575	3523	1720	2166	3192	628	976	660	145
11100	3589	1720	2166	3192	628	976	660	145
11700	3650	1782	2245	3308	648	1010	680	150
12300	3683	1794	2260	3330	655	1018	700	155
12900	3772	1842	2320	3418	670	1044	700	155
13500	3830	1870	2355	3470	682	1060	730	160
14100	3885	1896	2389	3520	689	1076	730	160
14700	3940	1924	2423	3570	700	1090	730	160
15400	4002	1954	2461	3626	710	1108	730	160
16100	4062	1982	2498	3680	721	1125	770	170
16900	4128	2016	2538	3740	721	1144	700	170
17800	4200	2050	2583	3806	725	1162	800	180
18800	4277	2088	2630	3875	729	1185	800	180
20000	4350	2101	2694	3945	729	1185	820	199
25000	5046	2437	3125	4577	846	1375	848	230

FAQ 1.WHO ARE WE ?
We are professional marine equipment supplier/exporter, new shipbuilding&ship-repair materials&outfittings soulution provider in Mainland, China.
2.WHAT CAN WE DO ?
We have professional design team to help you solve problems of your vessel, we can recommend a set of solutions for your vessel to choose.
3.HOW TO ENSURE THE QUALITY?
Every equipment will be tested before leaving our factory, we can show you the video and testing report, also if go for marine classification society survey, we will have the product certificate showing all the testing result and approved.
4.WHAT CERTIFICATE DO YOU HAVE?
Our products can be issued of ABS, BV, CCS, DNV, GL, LR, RINA…etc, while BV and CCS are most common use and worldwide accepted certificate, every products can apppy for above certificate.
5.HOW TO ENSURE INTERNATIONAL DELIVERY SECURITY?
Every cargo will be packed with appropriate package, also we have professional packing workers and forklifts to load and fix the cargo in container&air plane, ensuring the safety of sea/air transportation.
6.HOW ABOUT THE WARRANTY OF THE PRODUCTS ?
One year warranty-when the cargo arrived at your vessel we will keep providing service like Installation instructions and spare parts repairing in later using, we will always be there once you have any problems.

---
