Lifting Electromagnet for Handling Steel Band Rolls MW16/26/36/96 Series

Product Details

Product Description

Product Description
Lifting Electromagnet for Handling Steel Band Rolls MW16/26/36/96 Series

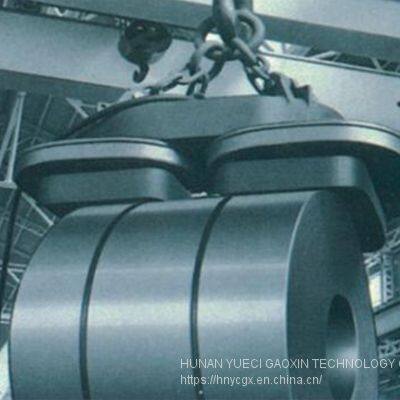

MW16, MW26, MW36, MW96 These series magnets are of quincuncial type and have movable magnetic poles, which are suitable for lifting and transporting Steel Band Rolls. They have three types of structure.
1.Vertical handling type.
Electromagnet absorbs the edge surface of the roiled strip. When the edge surface is convex, concave or orogarphical and the height difference is more than 25mm, by adopting vertical handling the electromagnet can well contact with the edge surface and fully play its lifting capacity as the magnetic poles can move up and down freely (MW26, MW36 Series).
2.Horizontal handling type.
Electromagnet adsorbs the arcuate side-face of the roiled strip (MW16 Series).
3.General handling type, which can do both vertical and horizontal handling (MW96 Series).
MW26 Series--Vertical handling type
MW36 Series--Vertical handling type
MW16 Series--Horizontal handling type
MW96 Series--both vertical and horizontal handling

---
