| Negotiable | 1 Piece (MOQ) |
| Item | Equipment | Quantity |
| 1 | Auto feeding system | One set |
| 2 | PET200 continuous crystallizing, dehumidifying, drying System (for single screw extruder) | One unit |
| 3 | Doulbe/single screw extruder | One set |
| 4 | Hydraulic rapid screen changer | One Unit |
| 5 | Gear pump | Two sets |
| 6 | Mould for two strap | One set |
| 7 | Cooling Tank | One set |
| 8 | The first pre-heating unit | One set |
| 9 | Heating oven | One set |
| 10 | First stretching unit | One set |
| 11 | Second stretching unit | One set |
| 12 | Embossing unit | One set |
| 13 | Thermo-setting | One set |
| 14 | 5-roller hauling off | One set |
| 15 | winder | one/two/four sets |
| Extruder type | ||||||
| Extruder | Type | Capacity | Main motor | Drying mode | Capacity type | |
| single screw | 75/30 | 80-100kg/h | 37KW | crystalizing | two straps | |
| 90/30 | 150-200kg/h | 75KW | two straps | |||
| 120/30 | 300-500kg/h | 132KW | two straps | 4 straps | ||
| double screw | 65/40 | 200kg/h | 75KW | negtive pressure drying | two straps | |
| double screw | 75/40 | 350kg/h | 132KW | two straps | 4 straps | |
| No. | Equipment | Qtn. |

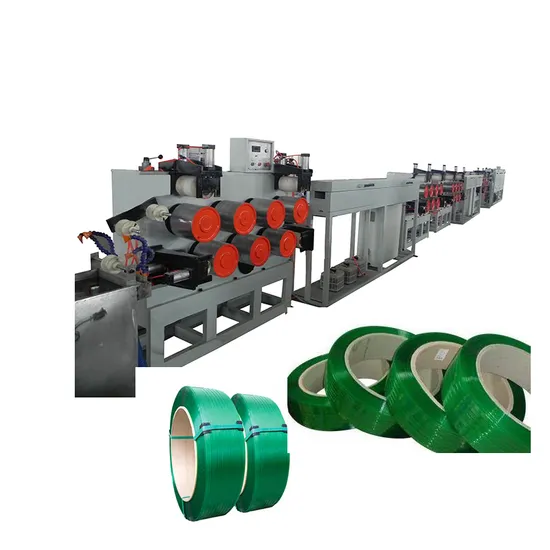

| PP strap band production line | ||
| 01 | Auto-feeding machine | One set |
| 02 | Single Screw Extruder | One unit |
| 03 | Screen Exchanger | One set |
| 04 | Die mold | One unit |
| 05 | Cooling Tank | One set |
| 06 | First Haul-off Machine | One set |
| 07 | Heating & Stretching Oven | One set |
| 08 | Second Haul-off&Stretching machine | One set |
| 09 | Embossing Unit | One unit |
| 10 | Tempering and Cooling Oven | One set |
| 11 | Third Haul-off machine | One set |
| 12 | Double Station Winder | one set/2 sets |
| Extruder type | |||
| Model | SJ-65 | SJ-75 | SJ-90 |
| Extruder | SJ-65/30 | SJ-75/30 | SJ-90/33 |
| Productivity | 60-100kg/h | 80-120kg/h | 120-150kg/h |
| Drive Motor | 30kw | 37kw | 45kw |
| Two-station Winder | 80-120m/min,adjustable | ||
| Strap Size | Width:5mm-20mm | Width:5mm-25mm | Width:5mm-35mm |
| Thickness:0.36mm-1.0mm | Thickness:0.5mm-1.3mm | Thickness:0.5mm-1.8mm | |
| Installed Capacity | about50kw | about 67kw | about80kw |
| Line Dimension | 26m×2m×2.2m (L×W×H) | 26m×3m×3m (L×W×H) | 26m×5m×3.5m (L×W×H) |
