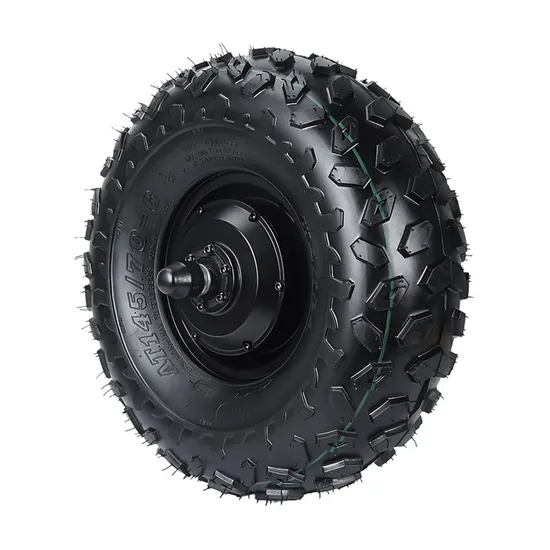

New Arrival 36V/48V 350W 200n. M 7km/H BLDC Geared off-Road Type 14.5inch Hub Motor for Ebike

US$135.00 1 Piece (MOQ)

Basic Info.

Model NO.
LY14.5
Excitation Mode
Compound
Function
Driving
Casing Protection
Closed Type
Structure and Working Principle
Brushless
Certification
ISO9001, CCC
Motor Type
Brushless Geared
Rated Voltage
24V/36V/48V
Rated Power
250W/350W/500W
Speed
4-7km/H
Max Torque
90/140/200n.M
Brake Type
Disc Brake
Shaft Type
Double Shaft/Single Shaft
Fork Size
139mm
Tyre Model
145/70-6
Load Weight
100-300kg
Transport Package
Carton Packing
Specification
7kg
Origin
China
Production Capacity
5000PCS/Month

Packaging & Delivery

Package Size
39.00cm * 39.00cm * 25.00cm
Package Gross Weight
7.000kg

Product Description

New arrival 36V/48V 350W 200N.m 7km/h BLDC geared off-road type 14.5 inch hub motor for electric ebike Product Description
Motor Model LY145G-03
Motor Type Brushless Geared
Rated Voltage 24V/36V/48V
Rated Power 250W/350W/500W
Speed 4-7km/h

Main Features of this hub motor: 1.Low noise 2.High safety coefficient, high efficiency 3.Long lifetime Material of this hub motor: 1. Wheel: standard international A356 aluminum heat treatment. 2. Magnetic steel: standard 38H 3. Iron core: DW350 lamination 4. Hall: Honeywell can resist high temperature: 150ºC 5. Cover: Aluminum die casting Product Parameters
