3lpe Coating Pipeline Heat Shrinkable Sleeve

Product Description

Radiation Cross Linked Heat Shrinkable Sleeves
Product profile
Product Description

TSD60 TSD80 HSS, Two-piece, with separate closures designed for the corrosion protection. HSWS is superior performance heat shrinkable products designed for corrosion protection on field applied girth-weld joints of buried and exposed steel pipelines operating up to 80°C (176°F).
The inner layer is two-components epoxy primer which coated on steel pipe;
Intermediate level is special hot melt adhesive ;
Outer layer is modified radiation crossing linking polyethylene backing.
Features & Benefits:
Heat Shrinkable Sleeves provide great corrosion protection, Superior resistance to Cathodic Disbondment and excellent durability against abrasion and chemical attack. The result is effective, good performance of sealing, wide application, easy to operate and preheating temperature low (50 celsius degree) ,long term protection against corrosion.
Easy installation
Saves time& money
Rapid & reliable Installation
Long term protection
HSS is a wraparound sleeve with a separate closure
Cross-linked backing provides superior abrasion, mechanical and chemical attack resistance.
High performance adhesive provides excellent resistance to Cathodic Disbondment to ensure long-term corrosion protection.
Just-in-time customized lengths allow bulk rolls to be field cut to protect any pipe size

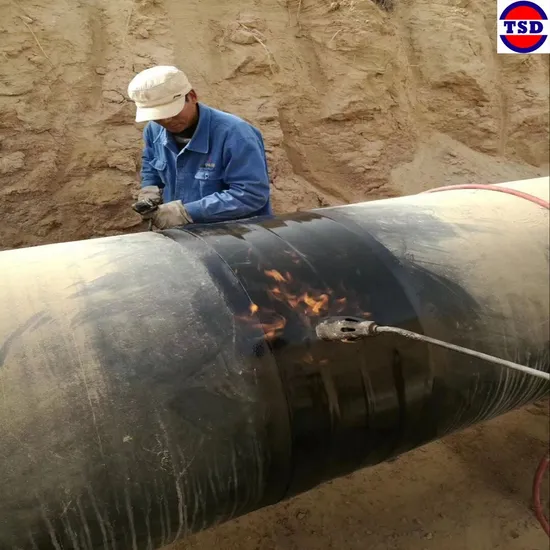

Open sleeve configuration allows the product to be applied after the pipeline has been welded and cleaned.
Specification( mm) :
Pipeline size: from Ø 108 to Ø 1554 (4''---60'')
Sleeves width: 100mm, 150mm,200mm, 300mm,450mm,500mm,600mm,650mm
Sleeves Thickness: 1.8mm, 2.0mm, 2.2mm,2.5mm,2.8mm
Closure patch: 100mm, 150mm,200mm (4'', 6'', 8'')
Model: HSS 3600/505/ Ø 1066.8
HSS--Heat shrinkable wraparound sleeves
3600------Roll length(mm)
505----- -Roll Width (as supplied)
Ø 1066.8----Joint or pipeline Diameter
Technical Data:

Sleeve Operating Characteristics	Test Method		Test Result	Result
Pipeline Operating Temp.			Up to 60°C
Minimum Installation Temp.			75°C
Mainline Coating Compatibility			PE,PP, FBE,HPPC
Adhesive Properties
Softening Point	ASTM E28		95°C	pass
Lap Shear @ 23°C	ASTM D1002		400N/cm2	pass
Backing Properties
Tensile Strength	ASTM D638		2600PSI	pass
Elongation	ASTM D638		500%	pass
Hardness	ASTM D2240		50 Shore D	pass
Volume Resistivity	ASTM D257		1x1016 ohm-cm	pass
Tape Properties
Tape Thickness			2.5mm	pass
Backing thickness			1.5mm	pass
Adhesive thickness			1mm	pass
Peel Strength @ 23°C	DIN EN12068		70N/cm	pass
Impact Resistance	DIN EN12068		>15J	pass
Indentation Resistance	DIN EN12068		>1mm@60C	pass
Cathodic Disbondment @ 23ºC, 28 days with epoxy	DIN EN12068		12 mm rad	pass

---
