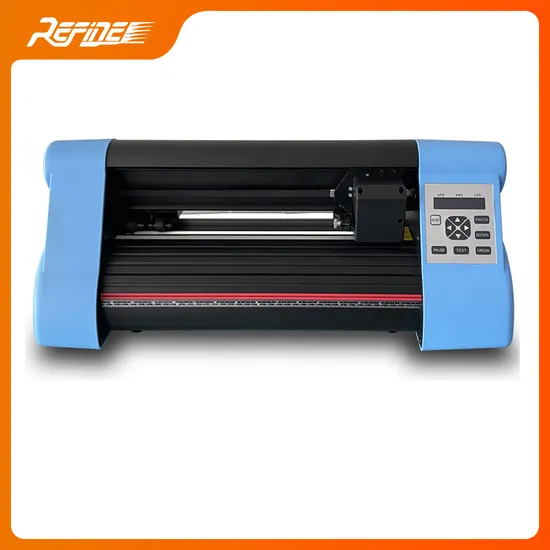

Economical Cutting Plotter Manual Contour Cut Vinyl Cutter

Product Description

Economical Cutting Plotter manual contour cut Vinyl Cutter
EC Series Economical Cutting Plotter
1: Standard with USB 2.0 and USB-Disk interface. It can work without computer.
2). Standard with Copy/ repeat function. Offline copy without limit, which helps to save time and Working labor effectively..
3).64Mb super-memory achieves a long time Offline cutting, meanwhile, the data storage can be Achieved even power failure.
4). New adopted ARMS processor and new driver module, system more powerful, driving more stable. Higher speed, lower noise and higher accuracy.
5). Humane design, allows to adjust cutting force and speed while working, direct and steady.
6).Inertial rotating blade holder enables more accurate and high quality cutting.
7). Emergency stop & stop to return at any time to check the cutting quality, easy to operate.
8). The real contour cutting function optional, full-automatic and easy to achieve contour cut without Interference from other light sources, high resolution.

Model	EC301		EC601
Max cutting width	300mm		600mm
Max media width	395mm		720mm
Pinch roller	2 sets		3 sets
stand	No		optional
cutting function	Manual contour cut
Max cutting force	1-500g
Max cutting speed	100-800mm/s
interface	USB 2.0 & USB-Disk
Memory	64mb
Mechanical resolution	0.0254 mm/ step
repeatability	0.127mm
motor	High speed stepper motor
Type of command	DM/PL, HP-GL
Power supply	AC100-240V/50-60HZ/3A
Work environment	Temperature: 0-35ºC Relative humidity:35%-95%
GW /NW	9KG /7KG	12KG /9KG( NO Stand) 17KG/14KG(With Stand)
Dimension (L*W*H)	700MM*300MM*320MM	1020*330*320mm( NO Stand) 1020*330*400mm(With Stand)

Applied Industries:
Mainly used for advertising, decoration, logo label production, craft gifts, clothing foreign processing various manufacturing processing industries.
Shipment:
1) TNT/DHL/UPS for samples, Door-to-Door shipping service.
2) For batch machines, shipment is effected by Seaway ( FCL or LCL).
3) We are able to arrange shipping. It's also acceptable if buyers nominate their own shipping agent.
4) Delivery Time:3 -7 days for samples;10-20 days for batch goods.
Payment:
1) We accept T/T, Western Union, L/C(depending on order amount).
2) Sight L/C is acceptable if order amount exceeds usd20,000.00.
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
5. Our products have been exported to Germany, Spain, UK, Russia, USA, Brazil, Mexico, Vietnam, Australia, Indonesia, Uruguay and many other countries.

---
