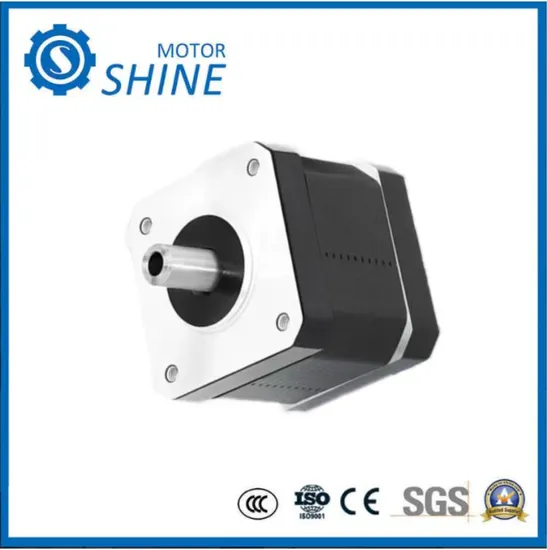

Hollow Shaft Stepper Motors 35stc -H Size 35 mm NEMA 14

Product Description

SHINE Motors Product Presentation

Hollow Shaft Stepper motorsBased on our standard range of 2-Phase Hybrid stepper motor which provides superior performance with respect to step resolution, high torque and speed. Our hollow shaft stepper motor range offers sizes from 20 to 86mm with 1.8° step angle.

Product Description

35STC38-1204AC-HSize 35 mm | Nema 14 | Length (L) 38 mm | Current/Phase 1.2 A | Holding Torque 0.23 Nm | Step Angle 1.8 °

Product Parameters

Size 35 mm Nema 14 Length (L) 38 mm Current/Phase 1.2 A Holding Torque 0.23 Nm Step Angle 1.8 ° Rated Voltage 3.4 Vdc Resistance/Phase 2.8 Ohm Inductance/Phase 4 mH Rotor Inertia 20 gcm2 Detent Torque 0,018 Nm N° of Leads 4 Weight 0.21 Kg Step Angle accuracy ±5 % Insulation Class B Protection Class IP30 Operating Temperature -20°C +50°C Max. Temp. Rise (rated current, 2-phase on) 80 °C Radial Play (450g load) 0,02 mm Axial Play (450g load) 0,08 mm Max. Radial Force (10mm from flange) 28 N Max. Axial Force 10 N Dielectric Strength (for 1min.) 500 VAC Insulation Resistance (min.500 VDC) 100 Mohm

Detailed Photos
Mechanical Dimensions
Shnmotor Top Rated Products
6. Package
1.FedEX / DHL / UPS / TNT for samples,Door to door service;
2.By sea for batch goods;
3.Customs specifying freight forwarders or negotiable shipping methods;
4.Delivery Time:20-25 Days for samples;30-35 Days for batch goods;
5.Payment Terms:T/T,L/C at sight,D/P etc.
7. FAQ
Q1. When can I get the quotation?
We usually quote within 24 hours after we get your inquiry.
If you are urgent to get the price, please send the message on skype and wechat or call us directly.
Q2. How can I get a sample to check your quality?
After price confirmed, you can requiry for samples to check quality.
If you need the samples, we will charge for the sample cost.
But the sample cost can be refundable when your quantity of first order is above the MOQ
Q3. Can you do OEM for us?
Yes, the product packing can be designed as you want.
Q4. How about MOQ?
1 pcs for carton box.
Q5. What is your main market?
Eastern Europe, Southeast Asia, South America.
Please feel free to contact us if you have any question.

---
