Product Description
Product Description
1,Major features

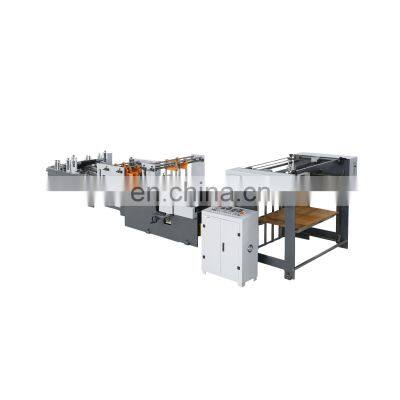

1)This machine has high-precision bag making and can produce various high-grade and middle-grade carrier bags.
2)This machine can greatly improve production efficiency, achieving objectives of streamlining staff, multiplying output, improving product quality and reducing costs for customers.
3)This machine is fed with printed and indented single-sheet paper by automatic feeder. After automatic positioning through front gauge and side gauge, the paper proceeds to processes such as automatic gluing, automatic accordion folding and automatic paper-tube pressing to complete the paper tube forming.
4)This machine is designed to be user-friendly, with high-quality materials for its spare parts, high manufacturing precision, sound quality, easy adjustment and convenient maintenance.
5)The gluing system adopts hot-melt glue rolling system with adjustable glue thickness, so as to save glue and lower costs.
6)The whole machine can realize variable frequency speed control.
7)The machine is applicable to a wide range of paper types including Kraft paper, art paper, ivory board, white board, etc.
8)Electrical components for the main low-voltage control part of the whole machine adopt import
-ed ones with brands such as OMRON, TOSHIBA, SCHNEIDER, and German MOELLER.
MaxInstead of worker,
reducethe business operation costs
2,The Characteristics of the product
With the raw material of sheet-fed paper after the treatment of indentation,the automatic positioning is transported paper by paper transport to front guide and side guide,and double-paper and slanting ones are automatic tested,which is transported to the roll rubber,Then,the procedure like gluing roll etc,are conducted.Finally,the molding paper roll is made.Various hand bags can be manufactured,with high-accuracy of manufacturing bag ,which is widely in suitable paper characteristics,elegant in end product and high in labor force substitution degree
3,The applicable paper materials
Brown paper,copperplate paper ,white-plate paper ,white paperboard and grey paperboard etc(including laminting paper)
Brown paper Copperplate White-plate paper White paperboard Grey paperboard
4,Working procedure
5,Tchnology information
| N O. | Configuration | Model |
| 1 | Maximum paper feeding specification (length × width) | 1020×600 mm/40.15*23.62inch |
| 2 | Minimum paper feeding specification (length × width) | 520×380 mm/20.47*14.96inch |
| 3 | Paper weight range with unit | 180~350 g (Art Paper 180~300 g) |
| 4 | Maximum bag-making speed | 70-100 pcs/min |
| 5 | Organ height | For project 1
70-150mm/2.76-5.91inch
For project 2
70-120 mm/2.76-4.72inch |
| 6 | Glue type | hot-melt glue |
| 7 | Total power | 6.5 kW |
| 8 | Overall dimensions (length × width × height ) | 7500×2200×1500 mm |
| 9 | Total weight | 2 t |
Our company reserves the right to change technical characteristics without further notice
6,Configuration list
| N O. | Configuration | Brand Model | Origin | Remarks |
| 1. | Frequency converter | Schneider | France | |
| 2. | AC contactor | Schneider | France | |
| 3. | Small relay | Omron | Japan | |
| 4. | Time relay | Omron | Japan | |
| 5. | Rotary encoder | Schneider | France | |
| 6. | Counter | Schneider | France | |
| 7. | Start button | Schneider | France | |
| 8. | Stop button | Schneider | France | |
| 9. | Emergency stop button | Schneider | France | |
| 11. | Power switch | Schneider | France | |
| 12. | Limit switch | Panasonic | Japan | |
>>
