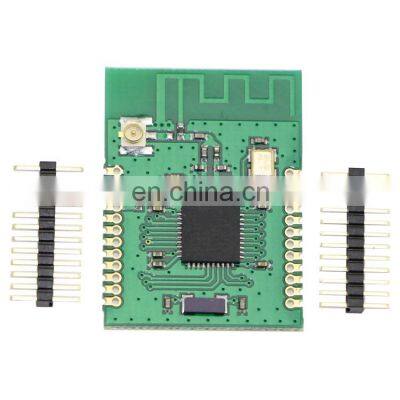

Zigbee cc2530 Wireless BLE RF module
Information Description:
CC2530 module supports 802.15.4, Zigbee2007, Zigbee Pro and Zigbee RF4CD standards. Modules CC2530F256 chip, with 5dbi antennas send and receive data visible distance up to 200 meters outdoors.
Module features:
Working Band: 2405MHz ~ 2480MHz
Supports 802.15.4, ZigBee2007, ZigBee PRO and ZigBee RF4CE standards such as:Communication protocol standards: IEEE 802.15.4
Network topology: star, mesh
Modulation: DSSS (O-QPSK)
Data transfer rate: 250Kbps
Antenna mode: external antenna.
Communication range: 300 meters to 450 meters
Receiver sensitivity:-97dBm
Emission current: 29mA
eceive Current: 24mA
Working temperature: -40 ~ 85 ℃
Power supply: 2.0V ~ 3.6V
Module Dimensions: 30 X 20mm
High-performance, low-power 8051 microcontroller core;
Adapt 2.4GHz IEEE 802.15.4 RF transceiver;
High receiver sensitivity (-97dBm) and anti-jamming performance;
Just a crystal, can meet the networking needs;
Current consumption is small (when the microcontroller core is running at 32MHz, RX is 24mA, TX to 29mA);
Power mode a current of 0.2mA, wake up the system only 4us;
Power mode 2 current 1uA, the sleep timer is running;
Power mode 3 current 0.4uA, external interrupt wake;
Hardware support to avoid conflicts of Carrier Sense Multiple Access (CSMA-CA);
Support digitized received signal strength indicator / link quality indication (RSSI / LQI);
Battery Monitor and Temperature Sensor;
It has 8 inputs 8 to 14 ADC;
Advanced Encryption Standard (AES) coprocessor;
2 supports a variety of serial communication protocol USART;
Module Applications
2.4GHz data transmission applications
Consumer electronics products
RF4CE wireless remote control
Zigbee wireless sensor network
Intelligent home / Intelligent Buildings / Intelligent Community
Lighting control system
Industrial Control and Monitoring
Health and medical care
