Advanced Plastic Machine for High Capacity PS Foam Sheet Production and Cutting

Product Description

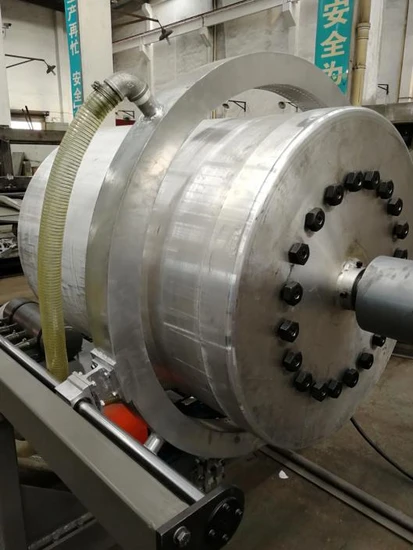

PS Foam Sheet Extruder Machine
The PS foam sheet extruder forms the vital foundation for creating high-quality final products. Its importance lies in initiating the essential production process with precision and efficiency.
As leading experts in the PS foam sheet industry in China, we possess vast experience dedicated to fulfilling customer requirements. Our primary market focus is the
South America region. We warmly invite you to explore your needs with us and visit our state-of-the-art factory.
Machine Features: - Precisely engineered screw
- Outfitted with highly accurate extrusion components
- Innovative rear section design on the secondary extruder to prevent leakage
- Computer-controlled cooling water system for the secondary extruder, ensuring optimal cooling - Unique die and air ring for consistent thickness and superior sheet quality - Capability to store all critical technical parameters
Model Parameters Unit: HLSJPS-130/170
Capacity kg/hr: 450-550
Thickness mm: 1.5-6
Sheet Width mm: Double sheet 1000-1500
Foam Rate times: 11-30
Density kg/m
3Density: 32.5-90
L/D Ratio: 37/1, 38/1
Cooling: Air cooling for primary extruder, water cooling for secondary extruder
Linear Speed m/min: 5-40
Central Height mm: 1100
Cooling Water Pressure Mpa: ≥0.3
Cooling Water Volume t/h: 20
Compressed Air Pressure Mpa: 0.7-0.9
Compressed Air Volume m
3/min: 2
Butane Gas Pressure Mpa: 1
Installed Power kw: 625
Installed Size m: 40x4.5x3
Weight t: 32

---
