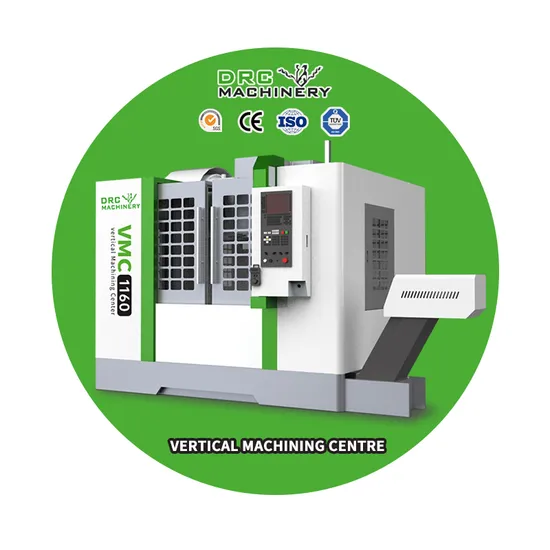

High Precision CNC Milling Machine Vmc1160 Manufacturer Supports Processing Vmc Machine Center

US$29,600.00
1-2 Sets
US$28,660.00
3+ Sets

Basic Info.

Model NO.
VMC1160
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Vmc1160
CNC Vertical Machining Center
Machining Center
Vertical Machining Center
High Quality Vmc1160
Vmc
Vertical Machining Center
5 Axis Machine Center
X /Y/Z Axis Travel
1100/600/620mm
Spindle Nose to Table Surface
120-620mm
Spindle Center to Column Surface
550mm
Table Size
1000/550mm
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 3100/2550/2900mm
Trademark
DRC
Origin
China
Production Capacity
500

Product Description


CNC 3/4/5 axis VMC1160 Milling Machine/Taiwan Vertical Machining Center/CNC Vertical Milling Machine
VMC machine tool inherits the advantages of strong rigidity, symmetrical structure, and strong stability of the traditional vertical CNC milling machine, and introduces international advanced dynamic rigid design concepts to optimize the design of moving parts. The machine tool has large torque and good quick response characteristics, which is suitable for the needs of various machining fields such as automobiles, molds, aerospace,
, and hardware.
Product Parameters
Model
 VMC 1160 (GSK system)
Travel parameters of 3 axis
X /Y/Zaxis travel
 1100/600/620mm
Spindle face to table distance
 120-720mm
Distance between spindle center and column guide surface
 675mm
Worktable parameters
Worktable size
 1200×600mm
Maximum load bearing of worktable
 1000kg
T Shot
 5×18×120mm
Feeding parameters
X/Y/Z axis rapid movement rate
 24/24/24m/min
Feed moving velocity X, Y, Z
 1-10m/min
Spindle parameters
Main shaft connection
 Belt
Spindle taper
 BT40-150
Range of spindle speed
 8000rpm
Spindle motor power
 (Alternating current servo)11kW
ATC paremeters
ATC capacity
 24qty
Maximum tool size
 Φ350/250mm/Φ150mm(tool from a distance)
Maximum tool weight
 8kg
Precision
PositionaI accuracy(JIS standard)
 ±0.008/300mm
Repeated positioning accuracy(JIS standard)
 ±0.005mm
Shape and weight
Machine size
 3100×2550×2900mm
Weight
 6800kg
