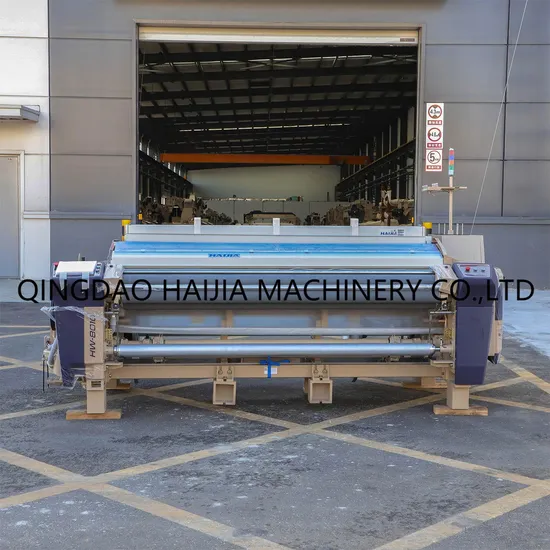

New Design for High Density Denim Fabric for Guatemala Market Water Jet Weaving Textile Machine with Plain Shedding. (HW8010-190)

Product Description

Excellent performance 10% higher work efficiency with 10% lower consumption.
1. Wide range and high density(75D example)
Weft yarn range from 10D-1800D,weft yarn range from 10D-300D, and yarn denisty can achieve 205 pick/inch.
2. High speed
Design speed is 900rpm;Plain shedding( 6 pcs frame):850rpm;
3. Low maitenance cost
Much more convenient maintenance operation, durable oil and filters to make longer maitenance period, 50% less expense
Fabric Details Show
Water Jet Loom with Plain Shedding Specifications

HW-8010
No.	NAME	Type and performance specifications
1	Wall board	We adopts HW-8010 special heavy enhanced, according to TSUDAKOMA Drawing,HT220-230 standard material, large CNC precision machining
2	Gear in the large box	AdoptingTaiWan(TTG)gear,ultra-quite,wear-resistant,low vibration and high precision
3	Bearing in the large box	Bearing in the large box is swedish SKF, Bearing out of the large box made in japan.
4	Beating up shaft	Adopt special treatment of solid beating up shaft, centralized oil lubrication in the support sleeve, add in weft counter weightbalancesystem(Haijiapatent:201220718493.9), optimization of beating up angle, the beating up more powerful and stable, cloth smooth.
5	Slay	SUS304 stainless steel reinforced and polishing processing slay at the top brand in China, achieve cloth smooth.
6	Stripe	Tianqi stripe, For 102 double stick, strengthening take-up.
7	Plastic stocks	New type and high quality plastic stocks
8	Beam	A number of optimization design on the basis of TSUDAKOMA ZW-810, the beam before and after the five angle pipe, steel material supply, before and after the beam with thickened angle.Especially before the beam on Haijia, unique design, draws on the advantages of air jet loom beam, making solid beating up shaft is more stable.
9	Electronic clip yarn	Electronic clip yarn
10	Suction pipe	∮76mm,thickness 6mm,sus304 stainless steel.
11	Cross beam	Heavy and lengthen treatment
12	Tension spring	∮12mm
13	Panel	HW-8010 Special type
14	Let-off and take-up device	Domestic electronic let-off and take-up
15	Temple bar,guide	HW-8010 Special type,3mm stainless steel
16	Temple	Five ring three rows of fine needle puncture (0.3mm) under the pressure of Temple (made fine denier fabric cloth smooth) South Korea Renhe or Jilong brand.
17	Leno parts	Taiwan production assembly (slide seat:Stainless steel, low noise ear wire assembly, running smoothly, long service life)..
18	Press roll	New press fabric service,press roll 40#,equal tension take-up
19	Main motor	Inovance servo motor system
20	Electronic control system	ROJ Brand, including panel\feeler\let off and take up.
21	Measuring	Adopting double jet Electronic length measuring .Adopting double Electronic measuring
22	Light detection weft	Light detection weft, plus plug signal amplifier.
23	Code	Electronic
24	Plunger	Shutai ceramic plunge
25	Spring	Japan AWA spring
26	Nozzle	Korea MDH
27	One way valve	Japan AWA valve
28	Oil seal	Made in Taiwan
29	Cutter parts	Taiwan bearing,scissors,scissors spring,improve efficiency.
30	Suction motor	Electronic suction motor HB(0.5kw)
31	Stabilized tank	Double filter,bucket type.
32	Take heald level	American DuPont material production, wear, long service life.
33	heald frame	Haijia designed high quality strengthend frame Customer can match by themselves.
34	Painting	TSUDAKOMA yellow color, two times over the primer, topcoat, special paint production line, improve the anti rust effect.
35	The whole machine of Stainless steel screw	Taiwan dongming SUS304 stainless steel screw,not rust
36	Stainless steel screw	Jin Yi brand in Taiwan
37	Waterproof device	Thickened waterproof curtain, TSUDAKOMA style transparent waterproof cover plate.
38	False twist spindle	Pull type
39	Weft stand	Double nozzle standard weft stand.
40	Oil supply	Centralized oil supply including beating up shaft and shedding parts
41	Swing degree	null
42	Casting	Identify quality supplier, according to the standard drawings, guarantee the material and weight..

Water Jet Loom with Plain Shedding Details Show
Haijia Machines' Working Cass in Customer Factory
Company Overview
Founded in 1995, Haijia Machinery is a professional manufacturer of shuttleless looms in China integrating R&D, manufacturing, sales, international trade and services. The main products include "Haijia" brand HW series water jet looms and HA series air jet looms. After the appraisal by China Textile Machinery Association, the technical level of water jet looms produced by Haijia Machinery has reached the international advanced level, and the market share has been leading the world for many years.
The company adheres to the corporate mission of providing customers with competitive weaving solutions and services, and continues to create value for customers. With the responsibility of revitalizing national brands, it will surely become a world famous brand in the Chinese loom industry.
The Workshop in Our Factory
Packing Details
Certification of HAIJIA Equipment
HAIJIA On Exhibition
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE,ISO
3: What about the delivery time?
A: 30-45 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment.
5. What about the Minimum Order Quantity?
A: The MOQ is 6 pcs.
Contact to us
Mr.Othman
QINGDAO HAIJIA MACHINERY CO.,LTD
ADD:NO.39 HUANTAI DONG ROAD,WANGTAI TOWN HUANGDAO QINGDAO CITY CHINA

---
