Vertical Drilling Machine, Update Driller, Drilling Tapping Machine

Product Description

Product Description
Technical parameter :
Feature :
The machine adopt gear driving and the driving moment is strong.
The machine has the six series speed variable feature, which can be widely fit for processing to kinds of common hard& soft material.
The head can rotated 360 degree and can tilted ±45 degree,reliable and easy job can be done.
The motor drive by the gear, which overcome the short coming of the belt skid.
According to the customer demand the machine can drill, enlarge, ream and tap the multi-holes by the multi-spindles.
ZS40 without coolant system, ZS40P with coolant system
Technical parameter :

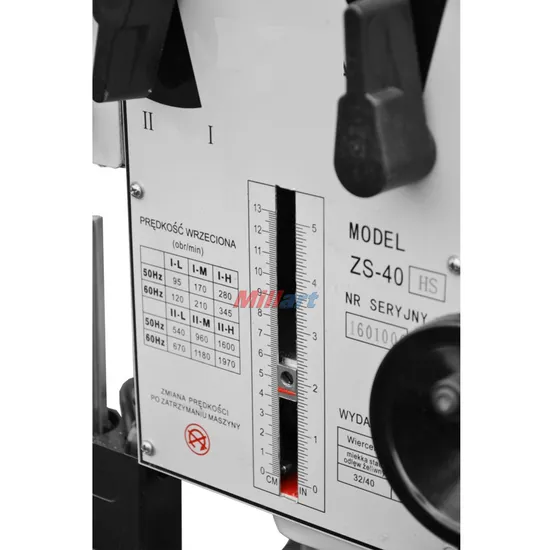

Model		ZS-40/ZS-40P
Max. Drilling capacity	mm	(Cast iron) 40 (Steel)32
Max. Tapping capacity	mm	(Cast iron) M32 (Steel)M24
Diameter of column	mm	115
Spindle travel	mm	120
Distance from spindle axis to column	mm	272.5
Max. Distance spindle nose to base	mm	800
Spindle taper		MT4
Spindle speeds	r/min	95 170 280 540 960 1600
Spindle speeds series		6
Dimension of base	mm	635*460/ 690*520
Motor	w	Single 750 Triple1100
G.W/N.W	kg	290/250 / 310/270
Packing dimension	cm	75x73x146

Sandard accessories:
Drill chuck,
Reduction sleeve and arbor
Draw bar
Wrench
Operate manual
Optional accessories:
Machine vice
Spindle guard
Coolant system
Multi-spindles Company information:
Packaging&Shapping
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
