| US$19,400.00 | 1 Piece (MOQ) |

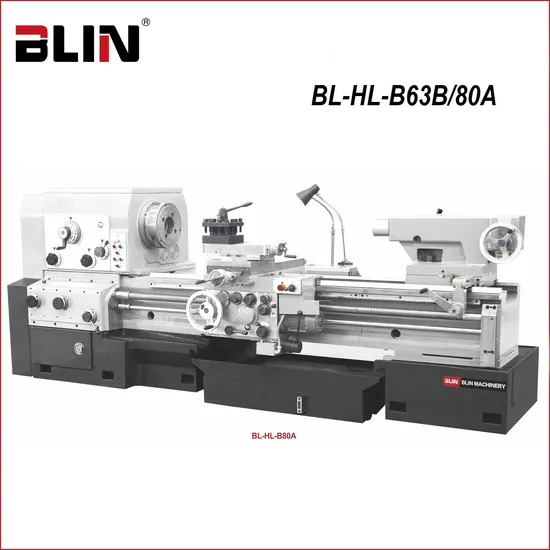

| Item | Unit | BL-HL-B63B | BL-HL-B80A | |
| Capacity | Guideway width | mm | 560 | |
| Max. swing dia. over bed | mm | Φ660 | Φ830 | |
| Max. swing dia. over cross slide | mm | Φ400 | Φ540 | |
| Max. swing dia. over gap | mm | Φ800 | Φ970 | |
| Chuck size | mm | Φ315 | ||
| Center distance | mm | 1500/2000/3000/4000(only 1500mm can mount gap) | ||
| Max. turning length | mm | 1400/1900/2900/3900 | ||
| Gap effective length | mm | 300 | ||
| Spindle | Spindle bore | mm | Φ105 | |
| Spindle hole taper | / | Metric 1:20 | ||
| Spindle head type | / | A1-11 | ||
| Spindle speed range | rpm | 12.5~1120(14steps) | ||
| Feeding and thread | Longitudinal feeding range | mm/r | 0.062~14.0(64 kinds) | |
| Cross feeding range | mm/r | 0.031~7.0(64 kinds) | ||
| Upper tool post travel | mm | 200 | ||
| Lower tool post travel | mm | 480 | 515 | |
| Toolshank size | mm | 32×32 | ||
| Metric thread | mm | 0.5~56(38kinds) | ||
| Inch thread | TPI | 56~0.5(43kinds) | ||
| Module thread | M.P. | 0.25~7(21kinds) | ||
| Diametrical pitch thread | D.P. | 56~4(27kinds) | ||
| Tailstock | Travel of tailstock quill | mm | 250 | |
| Dia. of tailstock quill | mm | Φ100 | ||
| Taper of tailstock quill | / | MT5# | ||
| Others | Spindle motor power | kw | 11 | |
| Coolant motor power | kw | 0.18 | ||
| Weight | kg | 4200/4500/5000/5800 | 4500/4800/5300/6100 | |
| Overall size(L×W×H) | mm | 3500/4000/5000/6000×1260×1385 | 3500/4000/5000/6000×1370×1470 | |
