Woodworking Machine PUR Hot Melt Adhesive Profile Wrapping Machine

Product Description

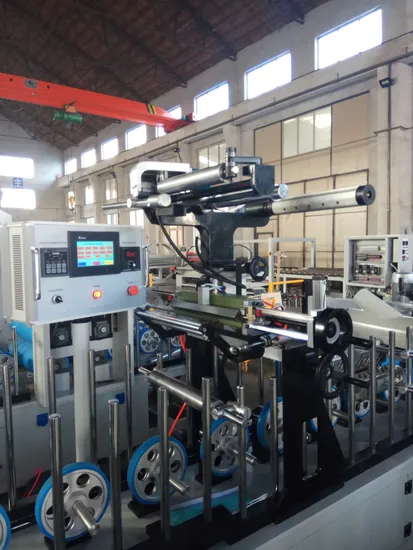

woodworking machine PUR hot melt profile wrapping machine BF350B-PUR
Function:
Dust collection,pre-heating,width adjustment,two film setting device,automatic film position incorrect device. This machine is used to wrap PVC film,veneer,paper on the surface of steel,aluminum,UPVC,wood,MDF,etc.
This machine can also wrap protective film after finish the PVC.
Characteristics:
1.This machine is special for PUR glue.
2.The gluing device looks like a lip.And the gluing work is very even,the quantity of glue can be set and controlled.
3.The PUR glue is waterproof,heatproof,creep resistance and solven resistance.
4.This machine is suitable for wrapping PVC,PP,PET,Veneer,Paper,foil on the surface of UPVC,wood,MDF,aluminum sheets and so on.
Technical parameter:
Model: BF350B-PUR (PUR scraping coating type)
Max gluing width: 350mm
Max. Height of sheet: 120mm
Drive power: 2.2Kw
Clean power:0.37Kw*3
Gluing power: 8Kw
Control system: PLC system
Electric: CHINT electric
The speed: 0-50m/min
Dimension of main machine:5780*900*1900mm
Dimension of gluing machine:1030*420*1650mm
Total weight:2000kg
