C5126 CE Certificated Normal Vertical Turret Lathe

Product Description

PRODUCTION DESCRIPTION
Vertical lathe is suitable for the industries of mechanical processing, can be used for inside and outside the cylinder, cone surface and face, cutting, cutting, etc.
This series machine is suitable for machining parts in all industries. On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.

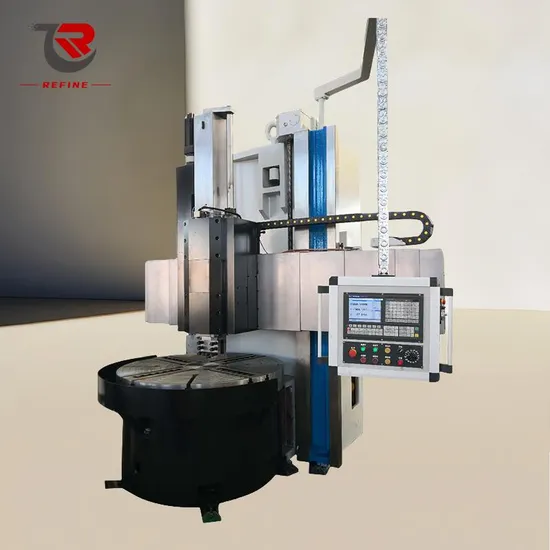

The table adopts thrust ball bearing with high accuracy for rolling guideway Spindle radial is performed NN30 type double row cylindrical rolling bearing. so it can improve the rotary procision and load capacity of the table.The rail head equipped with pentagonal turret, and the side heud is designed with square turret. The two heads are all adopted the hydraulic balance.The rail head is adopted rolling leadscrew bearing for transmission in horizontal and vertical movement.The electrical equipment of machine is controlled by PC. so it is high reliability.Overall dimensions of machine is beautiful and it is delightful for people to use. It is easily for maintenaince and service.The attachment of side head, digital control and turning taper can provided on special requirement. MACHINE PICTURES
PARAMETERS

Single column vertical lathe machine
ITEMS	UNIT	C5112	C5116	C5120	C5123	C5126
Max. turning diameter	mm	1250	1600	2000	2300	2600
Max. height of workpiece	mm	1000	1200	1250	1350	1350
Max. weight of workpiece	tons	3.2	5	8	8	8
Worktable diameter	mm	1000	1400	1800	2000	2300
Worktable speed series	step	16	16	16	16	16
Worktable speed range	r/min	6.3-200	5-160	4-125	3.2-100	2.5-80
Main motor power	KW	22	30	30	30	37
Beam travel	step	650	900	900	1000	1000
Machine weight	tons	8.5	12.5	17.5	18.5	19.5

ITEM	SPECIFICATION	QTY
Chuck jaw		4 sets
Toolholder		1 set
Arbor		1 pc
Foudation Bolt	M24x500	7
Hex nuts	M24	7
washer	24	7
Square tube wrench	22	1
DRO		1
Operation Manual	English Version	1
Certificate of Quality & Packing List	English Version	Each 1

MACHINE FEATURES
High quality castings and domestic dafang matching castings (HT300), artificial heat aging treatment. Castings do not do weight reduction treatment, the machine weight and standard weight.
VERICAL TOOL REST: The vertical tool rest is composed of a beam slide seat, a rotary slide seat, a slide pillow and a hydraulic mechanism.

The beam guide and ram guide are treated by super audio quenching (HRC≥50), and the sliding surface of guide is treated with plastic (including inclined iron surface and pressing plate surface), so that the product precision can be maintained for a long time and the overhaul cycle can be extended for more than 10 years at least.
The electric adopts Japan omron PLC control, the electrical parts adopt high quality components, standard (CE standard) wiring process, the whole electric machine has high reliability.
