30L Stainless Steel Bacterial Fermentation Tank Bioreactor

Product Description

Detailed Photos

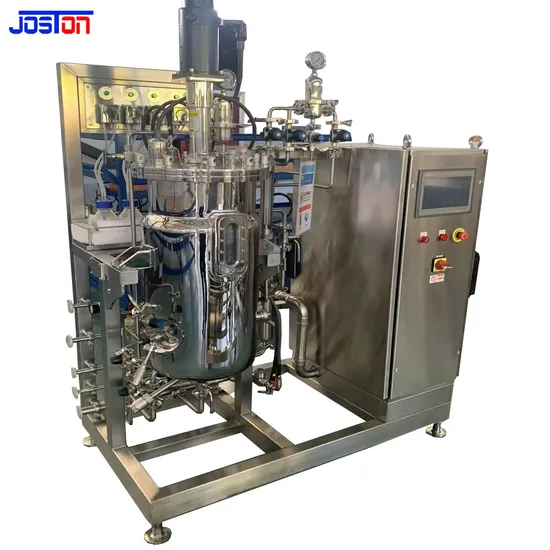

Product Description Fermentor bio-reactor
Fermentor reactor is used for various kinds of microbiology fermentation ,our equipment adopt the top mechanical agitator system ,the speed can adjustable ,and the all parameters can control ,like the reactor temperature ,pressure PH data ,PO2 data ,foam destroyed etc .all the parameters can be recorded ,stored and printed from the control panel automatic .so it is excellent stability and convenient operation .
Fermentor bioreactor Advantages
In place sterilization, safe and reliable, no transmission leakage risk; large viewing angle longitudinal mirror observation is clear; inoculation methods are various and reliable (standard flame inoculation port, differential pressure inoculation port and other forms are optional); floor type tank is beautiful and generous; operation and disassembly are easy; special specifications can be customized. Product Parameters Technical description

Item	Technology specification
Working volume L	5-6000L
material	Contact product is SS316L ,non-contact part is SS004
Surface finish	Inside surface is mirror polish Ra:0.3-0.5um Outside surface is mat polish Ra<0.8um
Working pressure	Inside shell is 0.2MPa; jacket is 0.3MPa
Agitation	1).Top mechanical agitator with two layers six blade impeller ,one is for foam destroyer 2).Speed is 0-400RPM ( adjustable )
Equipment of tank	1) .using alcohol flame inoculation 2) Sterile type sampling valve and bottom flush valve 3) PH sensor ,PO2 sensor ,foam sensor ,flow meter ,temperature sensor ,Pressure sensor ,level sensor ,sight glass ,sight light etc
construction	Fermentation reactor tank with completely pipeline and PLC/HMI control panel

Remark :above model just for reference ,we can do according to client's URS Company Profile
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
FAQ
1.What about your factory?
Our factory is located in Wenzhou city ,Zhejiang Province and have more than 15 years experience on machinery making.
2.How will your company control the equipment quality ?
We have a qualified expert team ,we will inspect every production proceed .also Machines will be tested in our plant before shipment .
3.Why we choose "JOSTON "?
1. We enhance the reliability of product's quality and working life .
2. We decrease the consumption cost of the product in the ruuning.
3. We improve research personnel's ability to deliver a creative design;
4. We use leading technologies in our product development and innovation, and thereby increase the competitive advantage of products.
4.Do you supply installation equipment in oversea?
Yes, if need, we can send our engineer to your plant to help you do installation and commission.
5.How can we know the order production status ?
We will arrange the person to take photo or video during manufacturing in every week to make you to know the production status.When goods are finished,we will take detailed photos or video for your checking ,after approve ,then we will arrange shipment .also you can arrange FAT in our plant when the goods is ready here
6.what is kind service do you offer before making order ?
1.according to your company URS ,we will make the design drawing accoridingly.
2.after your company approved drawing ,we will make quotation.
3. final we make agreement on payment terms ,delivery time ,package ,shipment etc.

---
