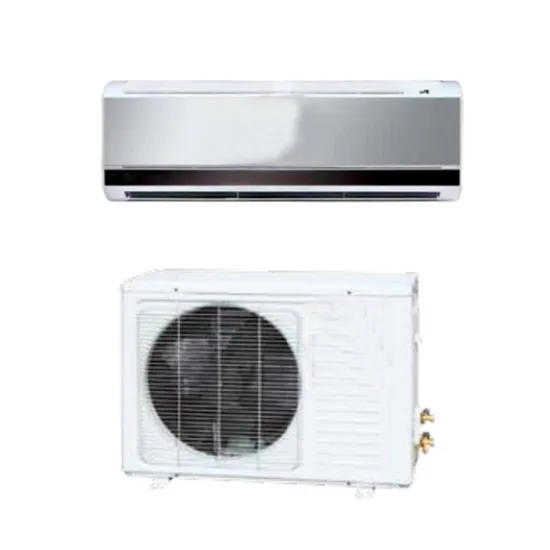

Wall Split Type Fast Cooling Gree DC Air Conditioners Wholesale Energy Saving Wall Mounted Inverter Type Cooler OEM Factory Price

Product Description

Heating and cooling dc split wall air conditioner with price
Product description
1.9000btu 12000btu 18000btu 24000btu 30000btu split air conditioner
2.wall split mount air conditioner for rooms etc
3.dc inverter air conditioner
4.heating pump wall split air conditioner
5.factory wholesale with cheap price and professional service

Model No.			VAC-09CHS/*	VAC-12CHS/*	VAC-18CHS/*	VAC-24CHS/*	VAC-30CHS/*
Type			Heating Pump	Heating Pump	Heating Pump	Heating Pump	Heating Pump
Control type			remote	remote	remote	remote	remote
Rated cooling capacity		Btu/h	9,000	12,000	18,000	24000	30000
Rated heating capacity		Btu/h	9,000	12,500	18,000	24500	30500
Moisture removal		Liters/h	0.8	1.0	1.5	2.0	2.5
Pressure	High(DP)	MPa	2.8	2.8	2.8	2.8	2.8
	Low(SP)	MPa	1.2	1.2	1.2	1.2	1.2
Indoor noise level at cooling	High	dB(A)	36	42	45	49	52
	Med.	dB(A)	34	39	41	44	47
	Low	dB(A)	31	36	38	40	43
Outdoor noise level		dB(A)	50	52	54	58	64
Electrical Data
Power supply			220~240V~/50Hz	220~240V~/50Hz	220~240V~/50Hz	220~240V~/50Hz	220~240V~/50Hz
Voltage Range		V	198~264	198~264	198~264	198~264	198~264
Rated current	Cooling	A	4.3	5.6	8.5	11.3	14.9
	Heating	A	4.1	5.7	8.2	11.5	15.0
Rated input	Cooling	W	940	1240	1880	2480	3280
	Heating	W	910	1250	1800	2520	3310
Annual energy consumption		kwh (cooling)	470	620	940	1240
Max Current	Cooling	A	5.6	7.3	11.1	14.5	19.4
	Heating	A	5.4	7.4	10.6	14.9	19.6
Max Power input	Cooling	W	1220	1610	2440	3220	4260
	Heating	W	1180	1630	2340	3280	4300
Refrigerating System
Refrigerant/Charge		Gram	R22	R22	R22	R22	R22
Compressor	Type		Rotary	Rotary	Rotary	Rotary	Rotary
BRAND			RECHI	RECHI	RECHI	GMCC	CRSS
Fan System
Indoor air circulation(Cooling/Heating)		m3/h	480	520	780	1000	1300
Indoor fan type			Cross flow	Cross flow	Cross flow	Cross flow	Cross flow
Outdoor fan type			Propeller	Propeller	Propeller	Propeller	Propeller
Connections
Connecting Pipe	Gas	mm	Φ9.52(3/8'')	Φ12(1/2'')	Φ12(1/2'')	Φ15.88(5/8'')	Φ15.88(5/8'')
	Liquid	mm	Φ6(1/4'')	Φ6(1/4'')	Φ6(1/4'')	Φ9.52(3/8'')	Φ9.52(3/8'')
Connecting Wiring	Size x Core number		1.0x3; 0.75x2	1.0x3; 0.75x2	1.5x3; 0.75x2	0.75x4; 0.75x2	0.75×4
Others
Suitable area		m2	9~16	15~23	20~35	27~45	50~70
Net dimensions (W x H x D)	Indoor	mm	718×240×180	770×240×180	900x280x202	1033×313×202	1186×340×260
	Outdoor	mm	600×232×500	700×256×552	760×256×552	820×300×605	900×805×360
Packing dimensions (W x H x D)	Indoor	mm	805×305×255	855×305×255	985x365x298	1103×400×300	1265×415×338
	Outdoor	mm	745×353×550	803×361×600	863×361×590	950×426×640	1031×925×447
Net weight	Indoor	kg	6	8	10	14	17
	Outdoor	kg	24	30	38	46	68
Gross weight	Indoor	kg	8	10	13	17	21
	Outdoor(without pipe)	kg	27	34	41	50	74
	Outdoor(with pipe)	kg	28	35	42	53	77
Loading Capacity	20'/40'/40'HC		132/277/310	103/235/275	95/198/222	70/150/166	98(40'HC)

Company Information
Vestar has engaged in home appliances markert for more than 10 years .
we are always absorbed in the design and manufacture of high quality product.
the products are with integrating efficiency, smallest noise , energy saving
security and full respect for the environment , we sell our products more than
70country as France, UK , Russia, Ukraine , India, Algeria , united Arab products
withmost profeesional service.
FAQ
1.Why to Choose Our Factory and Products ?
We Are Manufacturer and Have More Than 15 Years Experted Experience in This Field.
2.What Will We Do for Our Customers ?
We Can Do Pre-inspection for You Which is A Good Idea for Both.
We Will Surely Send the Goods According to the Sample Sealed and Agreed in the PI and Other Documents.
Besides, We Also Provide 24 Hours Online Technical Supports and Lifetime After-Sale Services
3.What is Your Product Range? Air Conditioner, Refrigerator, cooker hood, oven, Washing Machine, Dishwasher, Gas Hob, Microwave
4.What Competitive advantages do you have? a.Competitive price
b. Good after-sale service
c. Fast delivery time
d. High quality control
e. Material is made of 100% recycle material
f. Customized technical request, size, design and packing is welcomed
g.Provide one-step service from design, produce to quality control, sale and shipping

---
