Waste Pet Bottle Recycling Machinery/ Pet Flakes Washing Line Machine

Product Description

plastic bottle recycling production line(crushing washing drying)
PET bottle recycling production line is designed to process waste PET bottle and bale, after label removing, crushing, washing and drying, the raw bottles are processed into flakes, and further into fiber and blow in chemical fiber factory.Being engaged over 8 years in processing waste plastic, we are seasoned-experienced in designing the most reasonable and most efficient washing solution for you based on your specific production requirements and regional characters and differences. Plant List & Function
Bale Opening System - hydraulic bale cutting machine to shearing film bale into smaller pieces (optional)
Conveying Equipment - belts, screws for transporting materials
Metal Detection and Separation Equipment - prevents product contamination and protect processing equipment (optional)
Shredders - size reduction of materials (optional)
Wet Crushers or Granulators - size reduction & washing
Pre-washing and Screening Systems - trommels for removal of contaminants (sand, grit) (optional)

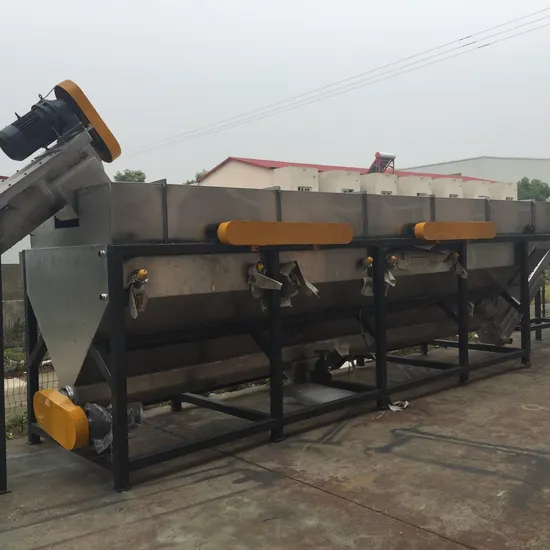

Washing and Separation Tanks - cleaning of material and density separation
Chemical Wash Tanks - removal of greasy dirt (optional)
Friction Washers - scrubbing of material
High Speed Dewatering Machine - removal of moisture from products
Hot Air Drying Systems - reduce the moisture content of the finished product
Bagging Systems - deliver the finished products into bulk storage bags

No.	Machine List	Specification
1	Belt Conveyer	1.5 Kw
2	PC800 Crusher	37Kw
3	Friction Loader	11 Kw
4	Downward Screw Loading	1.5Kw
5	Hot Washing Tank by Electrical	5.5Kw+60Kw
6	Washing Tank	2.2 Kw*3
7	Screw Loader	2.2 Kw
8	Centrifugal Dewater	5.5+1.5 Kw
9	Pipeline Drying System	48 Kw+7.5 Kw
10	Electrical Control Cabinet	Delixi Mark

Features of the product:1.Capacity optional:There are different capacity can be supplied:500kg/h,1000kg/h.....3000kg/h.2.Reasonable design:This pet recycling machine could be display "L" or "U" shape according clients' workshop.3.You can purchase separate device based on your own conditions.4.Long service life:Our machines use thicker raw materials (all our machines' minimum thickness is 5mm.Whereas other suppliers available device is 3mm.), thus greatly extending service life.5.Safe operation:All our machines are labeled alarms and warnings for regular maintenance, and machine designs also include security measures for automatic open crusher's cap for easier knife change, guard, emergent stop and the like.All of these ensure safe working condition while maximize capacity


Recycled PET granules/fiber/flakes can using for extruding,compounding ,masterbatch
Application
Special for waste plastic recycling, and convert to PP PE PET PS ABS PA PVC etc granules.
Two stage machine has better performance in recycling pvc.
Functions:
Plastics filling and modification, general and fibre color masterbatch, blending modification (rubber and plastic blending, plastic alloy),
functional masterbatch, glass fibre or carbon fibre reinforcement, various cable material, reactive extrusion, handling after venting and dewatering, special material, powder coating

Frequently asked questions:
1.Are you manufacturer or trading company?
Answer :we are manufacturer,all the machine ,we make it ourself to reduce the cost of our customer.

2.The quality of the machine is good?
Answer:All the machines are manufactured with high quality, we choose our material very strict,
all the material come to our factory must pass the test
substandard goods are returned to the supplier
3.Why choose us?
Answe:That is a frequent question,we take strong attention to every detail in the manufacturing process,
the quality control in our factory is very strict,
all defective semi-manufactures must be treated again or reject. all the machine must be checked out ,
then deivered to our customer.
all about that pushing up the price, what we want to do is give our customer a good quality product
with stable working and long lived.

---
