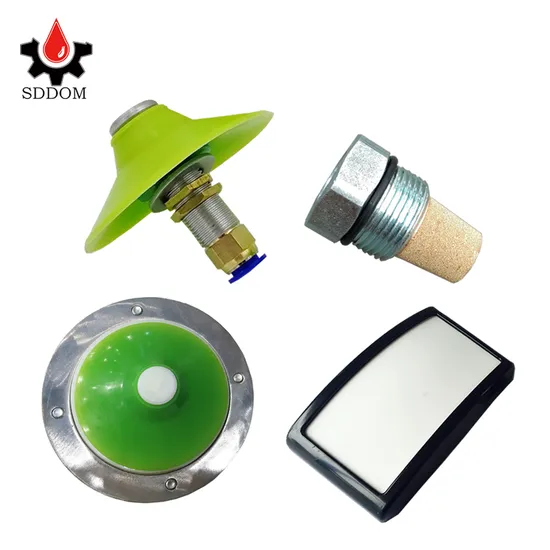

VB15 vibrating bin aerator is made of silicon rubber. It can inject air and vibrate at the same time. Compressed air is injected along the wall of the silo. The aerator edge will vibrate in high frequency as the air pressure changed. This can effectively help the powder flow down. Intermittent operation.
Working pressure
2 bar
4 bar
6 bar
Max.air consumption
0.28m3/min
0.66 m3/min
1.2 m3/min
PA20 pads for liquidity is made of wear-resistant high-molecule breathable materials. Compressed air permeate into the silo by 100cm2 breathable surface, and there shaped a area with much air so that it can reduce the bulk density of the material. Working temperature:<120°.The pad isn't suitable for viscous material.
Pressure
Air consumption
Weight
0.2bar
0.12m3/h
250g
NO25 air nozzle can easily installed from the wall of hopper, storage silo. It is very convenient for a variety of containers, especially under the condition of the inner wall of the container cannot be touched. It is suitable for almost all kinds of powder materials.
