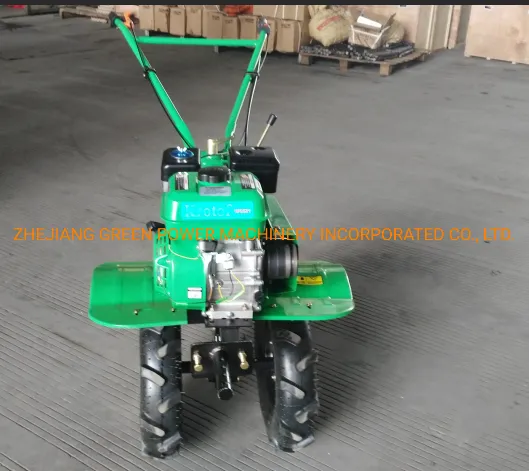

Gasoline Tiller Mini Tiller Garden Tools

Product Description

Welcome to Zhejiang Green Power factory. For 15 years, our factory is specializes in developing and producing all kinds of Gasoline and Diesel Engine, Gasoline and Diesel Generator, Gasoline and Diesel Water Pumps ,Power tiller,Cultivator, Brush cutter and all spare parts.
Our products have been exported to more than 50 countries and areas. Our main markets are in Europe, north America, south America, Africa, Middle East and Southeast Asia area etc.
Most of our items have got various approvals such as CE, EMC and SONCAP certificate, we persistent follow the policy of "observing contracts and keeping promise"and pursue the principle of "sincere, serving customer based on equality & reciprocity".
We are looking forward to going hand in hand with you and co-create resplendence.
Advantage:
1 Gear transimission
2 samll size,ligiht weight,conpact structure,easy to opertate
3 automatic clutch,variable speed,
4 three levels air filter,long life engine
5 match varity of equiment for tiller,finished more function in field
6 170F gasoline Engine made by ou selfsevles


Optional configuration:
A.Water pump
B.Sprayer
C.Ridger
D.Plough
E.ditching blade
F.4-4blades
G. Potato ditching blade


Parameter:

Tilling	Tilling scope (mm)	800-1000
	Tilling depth (mm)	150-300
	Transmission type	Gear
	Transmission oil (L)	1.8L
	Transmission Material	Cast iron
	Gear Shifting	0,1,2,-1
Engine	Engine model	170F
	Displacement (cc)	212
	Bore×Stroke(mm)	70x56
	Max power output(HP/rpm)	7.0/3000
	Max torque(N·m/rpm)	11.5/3000
	Fuel tank capacity (L)	6
	Oil capacity (L)	0.6
	Dimension(mm3)	720×390×860
	N/G·W(kg)	77/87
	20Q	86
	40HQ	288

how to choose tiller and cultivator:

1.Currently on the market Tiller drive chassis has two kinds, one is axes and gear, the other is the belt driven. The former is more suitable for large specific resistance of soil, farming terraces compacted areas.

2.It suggest mountains, hilly areas supporting power users to buy air-cooled diesel engine rotary tillers, because of its small size, small, to facilitate the transfer; supporting transport, it is recommended to choose a differential Tiller
Contact Information:
Contact person:Miss Judy

---
