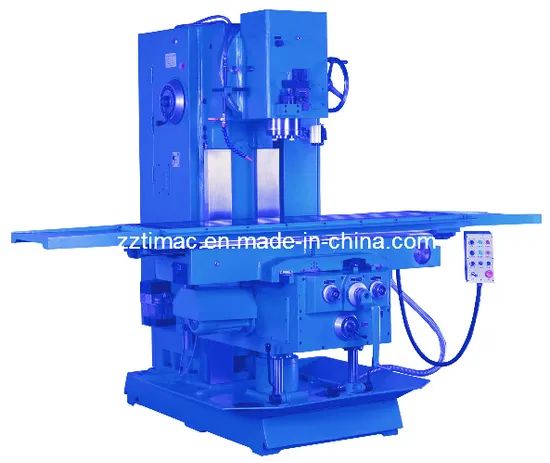

Heavy Duty Vertical Knee-Type Milling Machine

Product Description

HEAVY DUTY VERTICAL KNEE-TYPE MILLING MACHINE
Table size: 500X1800mm, 500X2000mm
Main motor: 15KW
Features:
1. The powerful carrying capacity, great specifications, high rigidity and fine structures.
2. Parts of mainframe of the machine are produced in German resin sand production line and the overall machine boasts higher rigidity and intensity.
3. The vertical guide of column and the horizontal guide of knee are integrated rectangular structure.
4. The matching guide surfaces are filmed with plastic materials to reduce friction coefficient and thereby to reduce dynamic and static friction coefficient value. It has ideal wear resistant, compressive resistant and anticreeping performance.
5. All gears are made by high alloyed steel. New integrated principal drive shift device is equipped.
6. The three-phase motor, located at the left side of the knee, achives feeding in three directions and fast movement through the drive of clutch.
7. PLC device which has high switch on/off speed and frequency controls the movement of the machine and it enables pretty high functional safety coefficient.

Specification	VM500	VM500A
Table surface	500×1800 mm	500×2000 mm
Number of T-slots and slot width	6×18 mm	5×18 mm
Distance between T-slots	63 mm	80 mm
Max. longitudinal travel	1330/1320mm	1530/1520mm
Max. cross travel	360/345mm	360/345mm
Max. vertical travel	630/600mm	630/610mm
Travel of spindle sleeve	90mm	90mm
Swivel angle of the milling head	±45°	±45°
Spindle taper	7:24,NO:50	7:24,NO:50
Spindle grade of speed	18	18
Spindle range of speed	35.5-1800 r/min	45-1800 r/min
Range of feed speeds(X,Y,Z)	16-800, 5-250 mm/min	16-800, 5-250 mm/min
Speed of rapid traverse(X,Y,Z)	3000,1000 mm/min	3000,1000 mm/min
Main motor	15 kw	15 kw
Net weight of machine	4500KG	5000KG
Overall dimensions (L×W×H)	2530×2250×2595mm	3200×2250×2595mm

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

Conventional Lathe	CNC Lathe	CNC Machining Center	CNC Milling Machine
Grinding Machine	Milling Machine	Special Use Lathe	Boring Machine

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.

---
